Models

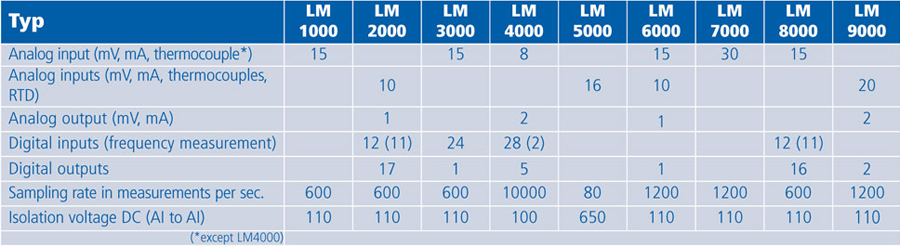

LogMessage is available in nine different versions. The versions have differing numbers of inputs and outputs; interfaces, internal functions and data logger memory remain the same for all versions. The versions differ according to channels numbers, sampling rates, isolation voltage and resolution.



LogMessage 1000 – The entry-level model with 15 analog inputs

The LogMessage 1000 is equipped with 15 analog inputs and a sampling rate of up to 600 measurements per second. The inputs can be used for data acquisition of mV, mA signals or any type of thermocouple. All inputs have differential and galvanic isolation.

LogMessage 2000 – Measurement data acquisition and automation in one device

The LogMessage 2000 is equipped with 10 universal analog inputs, one analog output, 12 digital inputs and 17 digital outputs. The device has a range ofinternal monitoring and control functions that enable it to be used as a measurement data acquisition device as well as an independently operating system for control, automation or monitoring tasks.

LogMessage 3000 – Fault diagnostics made easy

The LogMessage 3000 is equipped with 15 analog inputs (600 Hz sampling rate) and 24 synchronous digital inputs (with a time resolution of 1 msec) and 1 digital output. The device is particularly suited to fault analysis as well as to processing digital and analog events.

LogMessage 4000 – The monitoring device

The LogMessage 4000 has an overall sampling rate of up to 8,000 measurements per second and is ideally suited to monitoring functions. Any number of alarm and logic channels can be defined for the 8 analog inputs and 28 digital channels. Any of the 5 digital outputs can be switched irrespective of the current alarm situation.

LogMessage 5000 –  Galvanic isolation voltage of up to 650 VDC

The LogMessage 5000 is equipped with 16 universal analog inputs. The inputs are designed to cope with high voltages between individual channels. The LogMessage 5000 therefore has no problem measuring non-isolated signals.

LogMessage 6000 – Universal measurement and monitoring

The LogMessage 6000 is equipped with more than 25 analog inputs. The device has an overall sampling rate of up to 1200 measurements per second and can directly acquire, monitor and record data from any thermocouple or RTD sensor.

LogMessage 7000 – The thermocouple logger

The LogMessage 7000 can acquire measurements from up to 30 thermocouples of any type. Configuration software is available to set channels to specificthermocouple types.

LogMessage 8000 – Independent measurement and control

The LogMessage 8000 is equipped with 15 analog inputs and 12 synchronous digital inputs. The device also has 16 digital outputs to control alarms and events.

LogMessage 9000 – The universal logger

The LogMessage 9000 is equipped with 20 analog inputs, 2 analog outputs and 2 digital outputs. The device has an overall sampling rate of up to 1200 measurements per second and can directly acquire, monitor and record data from any thermocouple or RTD sensor.
