Basic IR thermometer for easy applications

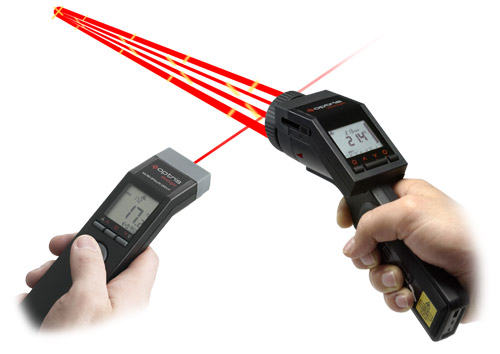

Handheld pyrometers are ideally suited for fast and mobile temperature measurement. Universally usable, they provide fast results in many situations.











Spectral Range Object Temperature Characteristics Models
8 to 14μm -35 to 900°C Multifunctional handheld thermometer LS

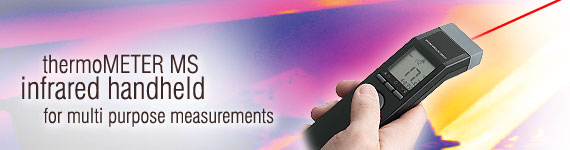

8 to 14μm    -32 to 760°C Portable IR thermometers MS
8 to 14μm 0 to 1300°C Infrared thermometer for temperature measurements up to 1300°C P20
1.0μm 650 to 1800°C Infrared thermometer for temperature measurements up to 1800°C P20 M-1
1.6μm 385 to 1600°C Infrared thermometer for temperature measurements up to 1600°C P20 M-2
525nm 1000 to 2000°C Infrared thermometer for temperature measurements up to 2000°C P20 M-5

Measuring ranges (°C): -32 to 420 | -32 to 530 | -32 to 760
Optical resolution 20:1 or 40:1
Spectral range 8 - 14 µm
Fast 0.3 second scanning
Sighting laser for precise aiming of the measurement object
Extremely lightweight (150 g) and userf-friendly, industrial design
High quality precision optics
Measurement spot of 13mm in each distance up to 140mm
Adjustable visual and audible alarm
