Modular capacitive measurement system

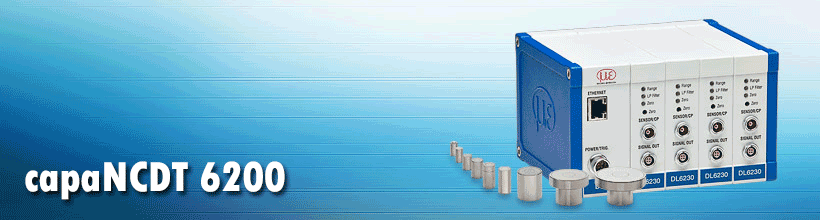

The capaNCDT 6200 is the first multi-channel measurement system that is entirely modular. The controller can easily be extended up to four synchronized channels to support flexible applications. All capacitive displacement sensors by Micro-Epsilon can be operated using the capaNCDT 6200 controller. The integrated Ethernet interface supports parameterization and measurements via web interface. The DL6230 demodulator is available for high resolution measurements. For high-speed measurements up to 20kHz, the capaNCDT 6222 system is available.

Characteristics

Probe ranges (mm): 0.05 | 0.2 | 0.5 | 0.8 | 1 | 2 | 3 | 5 | 10
Resolution. < 0.2 nm
Linearity 0.01 µm
Dynamic response: 20 kHz (-3dB)
Data rate (Digital output) 3.9kHz
Modular – up to 4 synchronized channels
Analog output (Voltage/ Current)
Easy set up and configuration via WEB interface
Math functions for thickness or differential calculations
Additional digital linearization possible

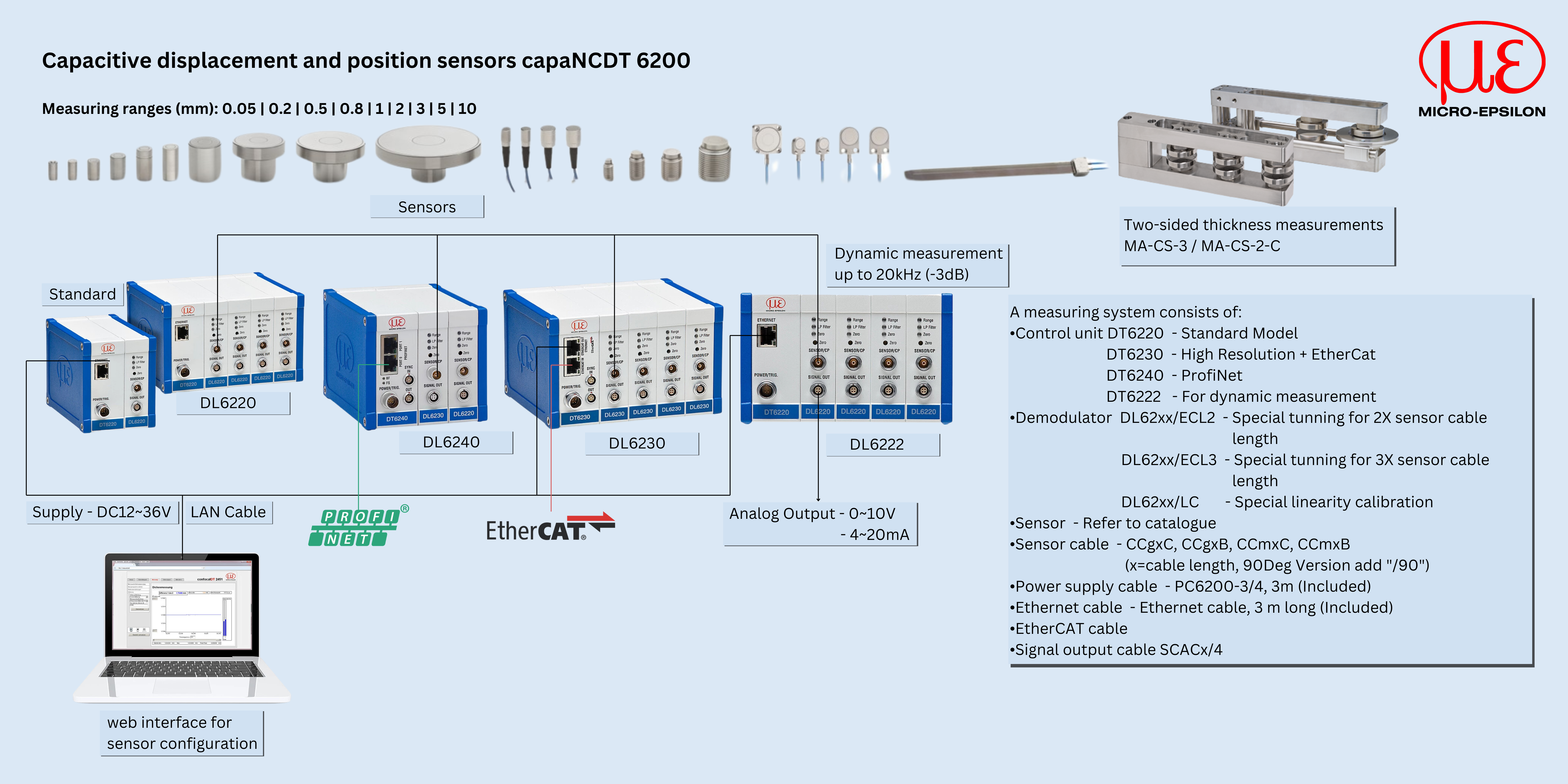

The measurement system consists of one controller and the respective demodulator for the sensor. A modular design enables the system to be expanded at any time to four measuring channels. Therefore, an additional demodulator is integrated. The compact controller can be used as a benchtop unit, wall-mounted or DIN rail-mounted via an adapter. The capaNCDT 6200 is compatible with all sensor models from Micro-Epsilon.

Ease of use via web interface

Due to a user-friendly web interface, the entire configuration process of the controller and sensors is carried out without using any additional software. The web interface can be accessed via Ethernet and provides set up and configuration options for filters, arithmetic links and other parameters.
