Compact laser triangulation displacement sensor Product Technology

Characteristics

Measuring ranges (mm) 10 | 25 | 50 | 100
Linearity from 10µm
Repeatability from 1µm
Measuring rate 2kHz
Compact size with integrated electronics
3m integrated sensor cable with open ends
Scalable analog output
Trigger input

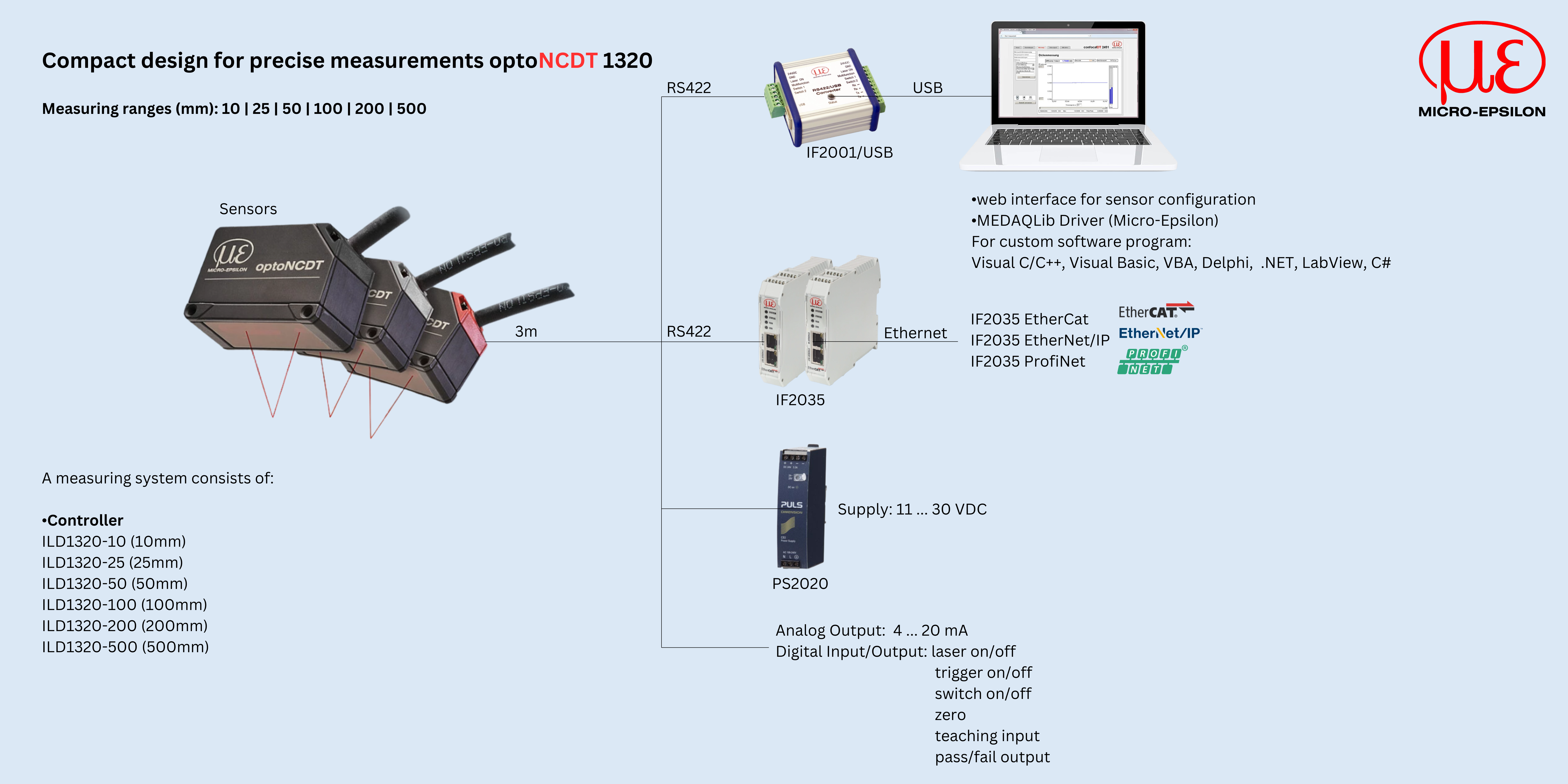

Interfaces: RS422, PROFINET, EtherNet/IP

Entry into precise laser displacement measurement

The optoNCDT 1320 is a new laser triangulation sensor with compact size for displacement, distance and position measurements. Due to its extremely compact size including integrated controller, the sensor can also be integrated into restricted installation space. Its low weight make the optoNCDT 1320 ideally suitable for applications where high accelerations occur, e.g., on the robot arm or in pick-and-place machines.

The optoNCDT 1320 offers high accuracy and adjustable measuring rates up to 2kHz. The Active Surface Compensation (ASC) provides stable distance signal control regardless of target color or brightness. Very small objects can be detected reliably due to the small measurement spot size.

Plug & Play for unique ease of use

The optoNCDT 1320 models enable quick sensor commissioning with just a few clicks using the multifunction sensor button. An intuitive web interface enables the user to carry out extended sensor settings. The most common surface types can be selected using presets. The quality slider enables the sensor to be adapted to static and dynamic processes.

A class of its own

The combination of speed, size, performance and application variety defines a new class of laser sensors. The worldwide unique SMART sensor concept combines an integrated web interface with a compact sensor size. The excellent price/performance ratio enables new areas of use, especially for serial applications in machine integration and factory automation.
