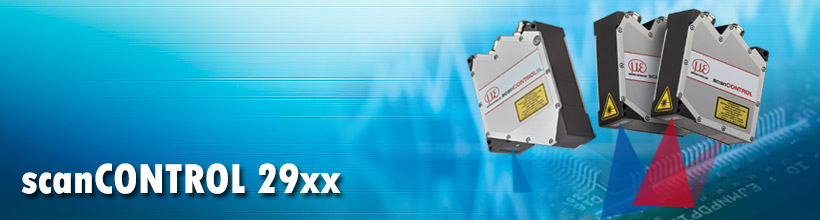

Compact laser scanner for high precision

The scanCONTROL 29xx series is focused on minimal size and low weight. The controller is integrated in the housing, simplifying cabling arrangements and mechanical integration. Due to its compact design and the high profile resolution, this series is especially suitable for static, dynamic and robotic applications requiring highest precision.

Characteristics

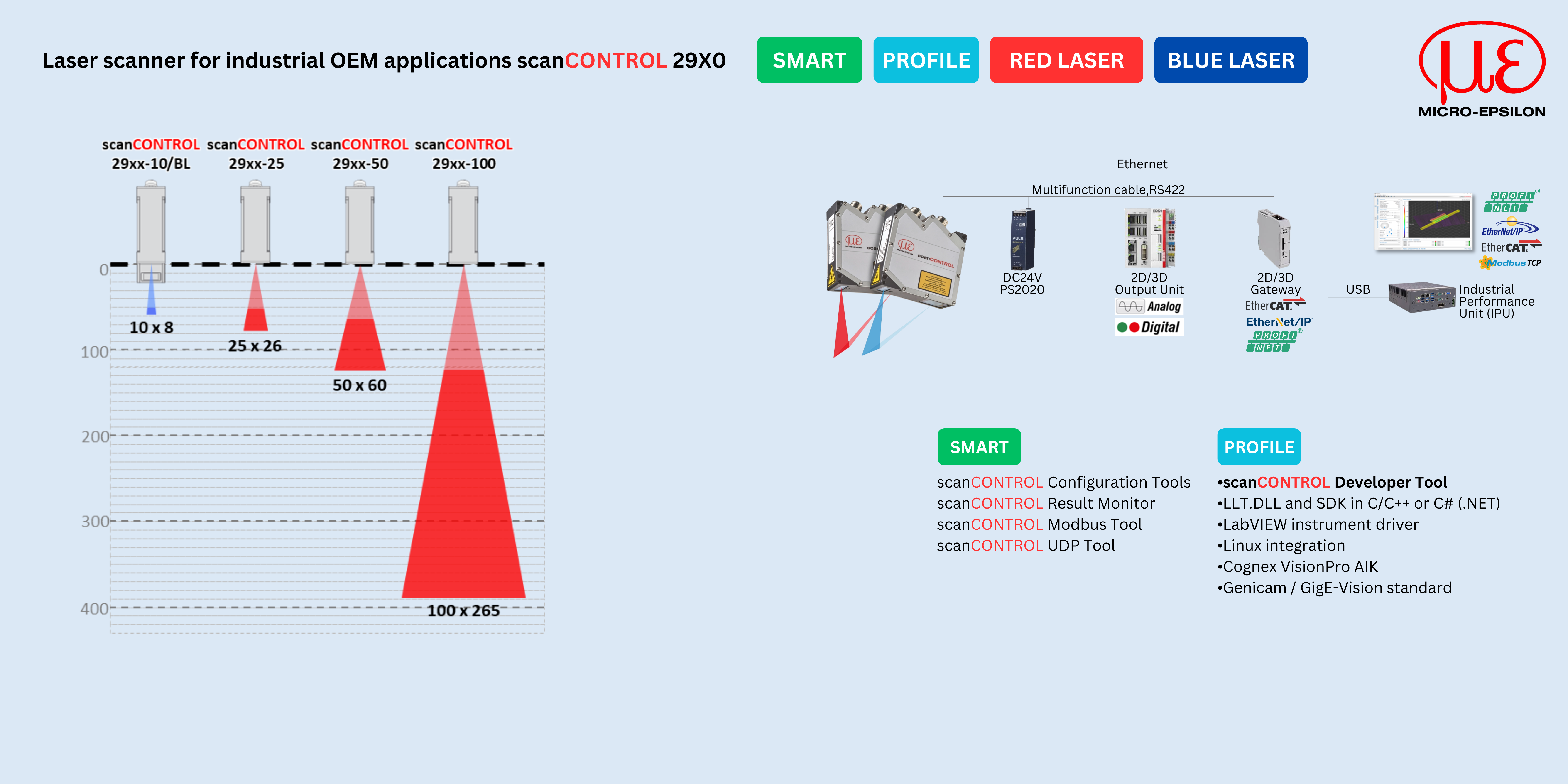

Measuring ranges z-axis up to 265 mm
Measuring ranges x-axis up to 143.5 mm
Measurement speed up to 2,000 Hz
Measuring rate up to 2,560,000 points/sec
Reference resolution z-axis from 1 μm
Resolution x-axis up to 1,280 points
Also available with blue laser

Compact	Highspeed	Smart	Highspeed-Smart

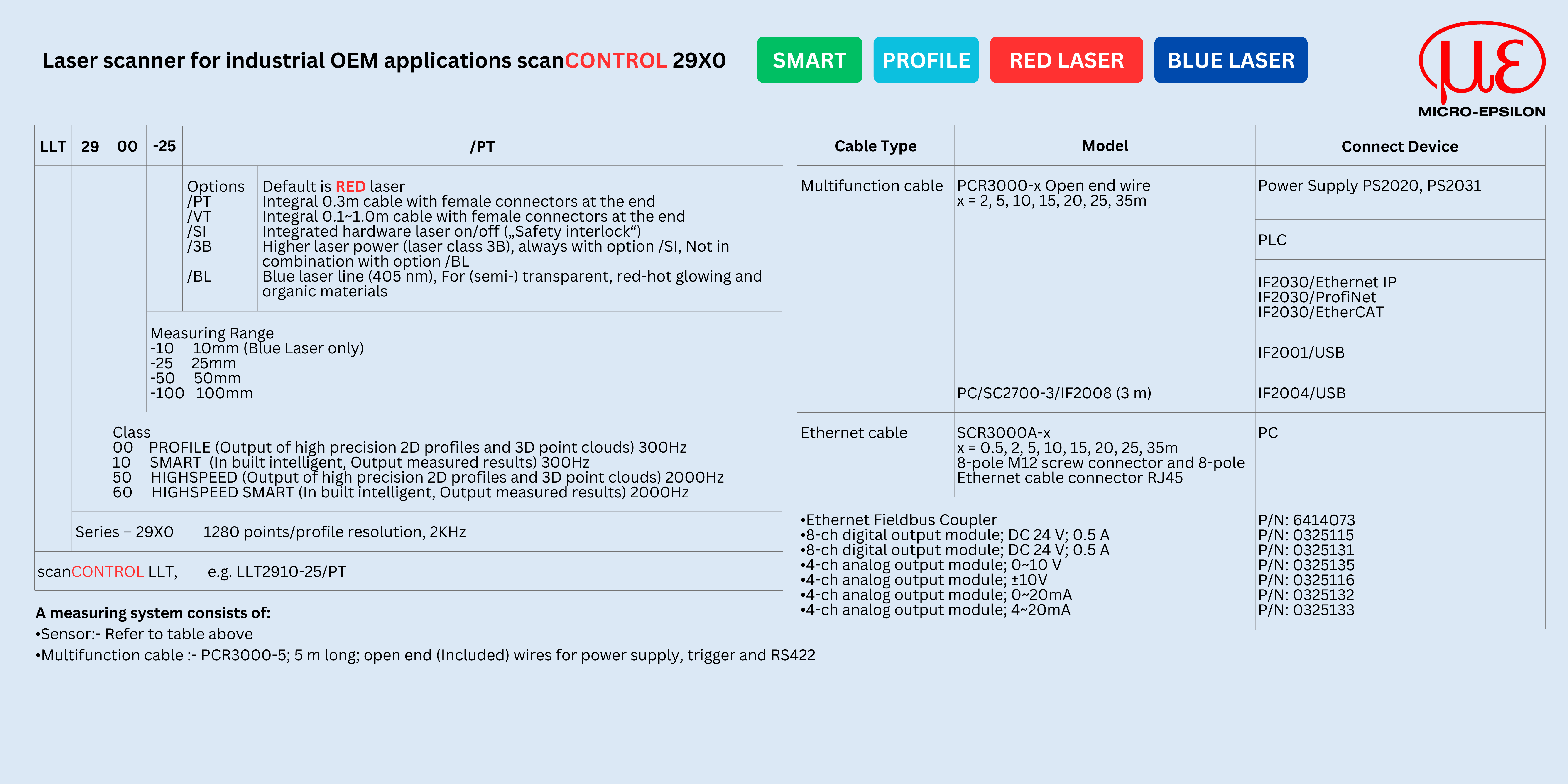

Models LLT 2900
2900-25	2950-25	2910-25	2960-25
2900-50	2950-50	2910-50	2960-50
2900-100	2950-100	2910-100	2960-100
Models LLT 2900 with Blue Laser
2900-10/BL	2950-10/BL	2910-10/BL	2960-10/BL
2900-25/BL	2950-25/BL	2910-25/BL	2960-25/BL
2900-50/BL	2950-50/BL	2910-50/BL	2960-50/BL
2900-100/BL	2950-100/BL	2910-100/BL	2960-100/BL
