Thermal imaging cameras for glass

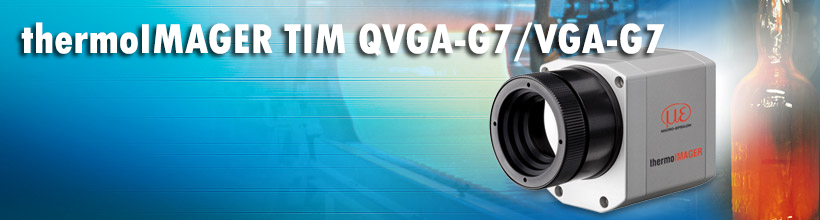

The thermoIMAGER TIM QVGA-G7 / VGA-G7 is an industrial thermal imaging camera specially designed for applications in the glass industry. The spectral range of 7.9 µm enables reliable measurements even on thin glass sheets. If the glass has a reflection coating, an additional reference pyrometer can be integrated in order to readjust the thermal imaging camera. Like all thermoIMAGER TIM cameras, the G7’s license-free analysis software includes a line scan feature that enables the monitoring of thermal processes, even if the field of vision is restricted.



 Characteristics

  •  Line scan feature via license-free analysis software
  •  Compact size of 46 x 56 x 68-77 mm
  •  Image frequency of 80 Hz
  •  Robust against ambient temperatures up to 70 °C without requiring additional cooling, up to 315 °C with cooling jacket
  •  Optional integration of a reference pyrometer for glass with a reflection coating
  •  NEW: TIM VGA G7 with up to 125 Hz measurement speed and VGA resolution of 640 x 480 pixels
