Inspection of the interior diameter of the extruder barrel

The idiamCONTROL sensor system precisely measures the inner diameter of bore holes such as in extruders in order to determine the wear. The idiamCONTROL is guided into the bore hole and determines the bore hole diameter while being pulled out. Wear-based tolerance violations are automatically displayed and can be output via USB.

Advantages

Touchscreen with user-friendly software for fast evaluation directly next to the extruder
Reliable measurement on up to 6 tracks
Suitable for numerous extruder barrel dimensions from 32 to 180 mm diameter
Diameter is directly displayed
Automatic evaluation function via tolerance specifications
USB interface for data output and logging
Integrated function test for inspecting the condition of the measuring system

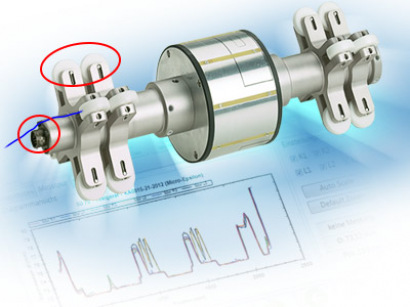

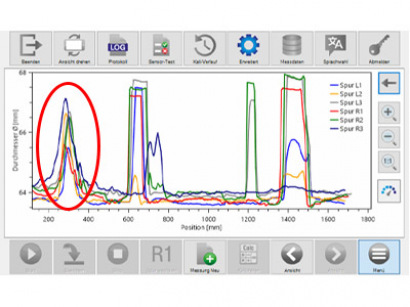

Measurement on all metals thanks to factory calibration		Easy and safe guidance directly via reinforced cable and spring-loaded rollers		Reduced service time for extruder maintenance		Targeted replacement of defective segments

Operating principle

The idiamCONTROL works with integrated capacitive displacement sensors. These measure the actual bore diameter over the whole length of the process part. As the axial sensor position is detected as well using a cable-length measuring system, deviations in diameter can be found quickly and reliably. In doing so, each sensor position is related to a diameter in the longitudinal axis of the bore hole. As a result, the diameter length profiles are provided in six tracks and with a spatial resolution of 1 mm. The wear is calculated from the respective diameter values using the evaluation software.
