White light interferometer for stable thickness measurement with submicron accuracy Product Technology |
|||
The new IMS5400-TH white light interferometer opens up new perspectives in industrial thickness measurement. The controller offers an intelligent evaluation feature and enables the thickness measurement of transparent objects with highest precision. | |||
|
|||
Stable thickness measurement with varying measurement distancesThe IMS5400-TH white light interferometer is used for highly accurate thickness measurements from a relatively large distance. A decisive advantage here is the distance-independent measurement, where a nanometer-accurate thickness value is achieved even with moving objects. The large thickness measuring range allows the measurement of thin layers, flat glass and films. Since the white light interferometer works with an SLED in the near infrared range, thickness measurement of anti-reflective coated glass is also possible.

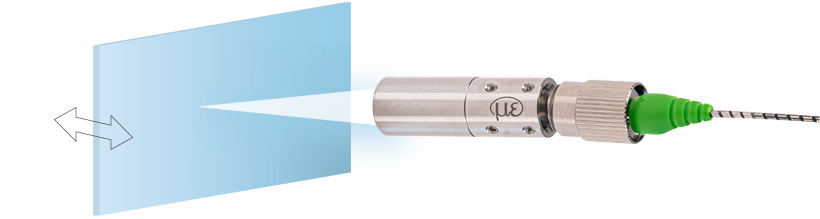

Thickness measuring ranges |
|||
|
|||
