Numerous applications can be solved using different sensor models. As well as standard sensors for high precision measurement tasks, miniature sensors with axial and radial measurement directions are also available. The sensors have a passive design and so do not radiate any heat onto the target, which enables them, depending on the model, to be used in different environments e.g. in a vacuum. |
|
|
|
|
|
|
Confocal miniature sensors for displacement, distance, position – confocalDT IFS2402
|
|

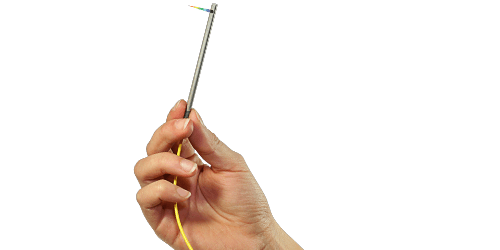

confocalDT IFS2402 confocal displacement sensors are especially suitable for high precision applications in restricted installation spaces. These miniature, confocal chromatic sensors with only 4 mm outer diameter and stainless steel case are used within narrow cavities or drill holes. A particular advantage is the sensor model with radial beam path enabling the detection of walls and structures.
|
|
|
|
|
|
Confocal hybrid sensors for displacement, distance and position – confocalDT IFS2403
|
|
The confocal chromatic confocalDT IFS2403 measurement sensor combines the benefits of two successful confocal design concepts. With an external diameter of 8mm, this sensor is as compact as the confocalDT IFS2402 miniature sensor series. However, due to its larger digital aperture, it can receive significantly more reflected light than the smaller 4mm diameter version. These sensors are also available as radial or axial model.
|
|
|
|
|
|
Confocal chromatic sensors for displacement, distance, position, thickness – confocalDT IFS2404
|
|
confocalDT IFS2404 displacement sensors are designed for high precision applications in restricted installation space. Based on a special lens technology, these sensors provide high resolution and a small light spot diameter. They are ideally suitable for serial applications.
|
|
|
|
|
|
New: Compact, confocal 90° sensor for precise distance measurements – confocalDT IFS2404/90-2
|
|
|
|

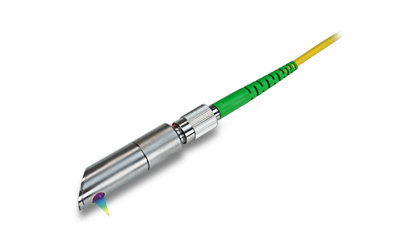

The confocalDT IFS2404/90-2 90° sensor is designed for precise measurements of displacement, distance, position and thickness. This sensor is equipped with a 90° lens and is therefore ideally suited to installation in restricted spaces. Based on a special lens technology, the confocalDT IFS2404 sensors provide high resolution and a small light spot diameter. They are ideally suitable for applications involving a large number of pieces. |
|
|
New: Confocal sensors for displacement, distance, position, thickness – confocalDT IFS2405
|
|
|
|

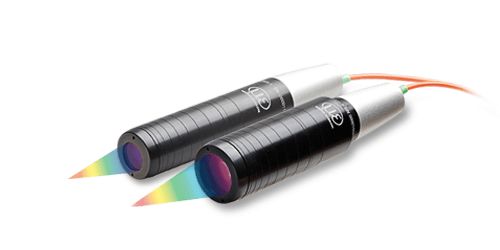

confocalDT IFS2405 are confocal displacement sensors for extremely precise applications. These confocal chromatic sensors offer large offset distances and tolerate tiltings. They are used for common measurement tasks and are in addition suitable for one-sided thickness measurement of transparent materials. New: This sensor is now also available with a measuring range of 6 mm which is ideally suitable for measurements from a safe distance to the target. |
|
|
Compact sensors for precise displacement and thickness measurements – confocalDT IFS2406
|
|
|
|

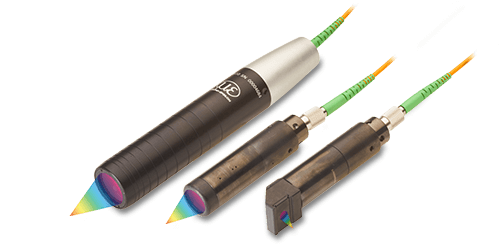

The confocal IFS2406 series stands out due to its compact design and high precision. As well as distance measurements on reflecting or transparent surfaces, the sensor can also be applied in one-sided thickness measurement of transparent film, plates or layers. Due to its axial and radial measuring directions, the IFS2406-2,5 sensors are suitable for vacuum applications and extremely versatile in terms of its use. |
|
|
90° sensor for displacement and surface roughness measurements – confocalDT IFS2407/90-0,3
|
|
|
|
The confocal chromatic confocalDT IFS2407/90-0,3 90° sensor is designed for precision displacement and surface roughness measurements. The sensor is equipped with a 90° lens and is therefore ideally suited to installation in restricted spaces. The lens in the sensor generates a small measurement spot size, which enables a high spatial resolution. The small measurement spot size combined with a large tilt angle enable roughness measurements where maximum precision is required. |
|
|
New: High precision for distance, roughness and thickness measurements – confocalDT IFS2407-0,1
|
|
The confocalDT IFS2407-0,1 sensor is designed for high precision measurements of distance, roughness and thickness. The high numerical aperture (NA 0.8) enables the thickness measurement of transparent objects with a minimum thickness of 5 µm. Another light-intensive sensor model featuring NA 0.7 is specially designed for high speed processes.
|
|
|
|
|
|
New: Confocal chromatic sensor with high tilt angle – confocalDT IFS2407-3
|
|
The confocal chromatic confocalDT IFS2407-3 sensor has a large measuring range of 3 mm while offering a large offset distance. Due to its large tilt angle of ± 30°, the sensor is particularly suitable for measurements on curved surfaces such as gearwheels or external threads.
|
|
|
|
|
|
|
|
Measuring ranges (mm): 0.4 | 1.5 | 2.5 | 3.5
