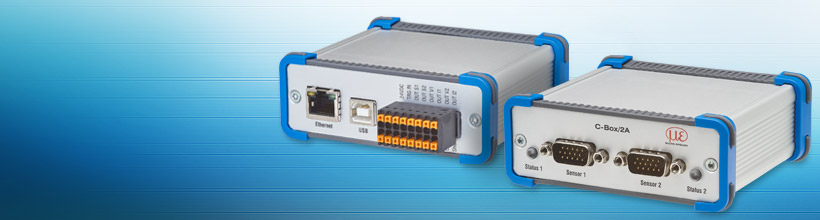

C-Box/2A controller for conversion and evaluation of up to 2 sensor signals

C-Box/2A is used for fast D/A conversion of two digital input signals or for evaluating two digital sensor signals. Output of the sensor signals is possible via two configurable analog outputs, Ethernet or USB. Handling of the C-Box/2A and of the connected sensors are performed via web interface. Averaging functions, thickness, diameter, step and inclinations can be calculated. The D/A conversion is executed with 16 Bit and max. 70 kHz.


 Characteristics

  •  2x analog outputs
  •  Trigger input
  •  Multifunctional output
  •  2x RS422 Input
  •  Automatic sensor recognition
  •  Measurement value output via Ethernet, USB or analog
  •  Current output 4 - 20mA (scalable via web interface)
  •  Voltage output 0-5 V, 0-10 V,+/- 5V, +/- 10V (scalable via web interface)
  •  2x switching outputs for sensors or C-Box/2A status
  •  Parallel data output via 3 output interfaces
  •  Compatible with the optoNCDT 1420, optoNCDT 1750, optoNCDT 1900, optoNCDT 2300 sensors
