Infrared pyrometers for universal measurements

Infrared pyrometers of the thermoMETER CT series can be used in a wide variety of applications. From low temperatures prevalent in cooling chains or laboratories, to the highest temperatures in hot molten metals and blast furnaces - these IR pyrometers measure precisely and reliably.

Catalog thermoMETER

Characteristics

Most powerful sensor portfolio in the world
Non-contact distance and thickness measurements with highest measurement accuracy and signal stability
Wide range of applications from industrial environments to vacuum and clean room
High interference immunity to magnetic fields
Extremely high temperature and long-term stability
Vacuum-compatible versions

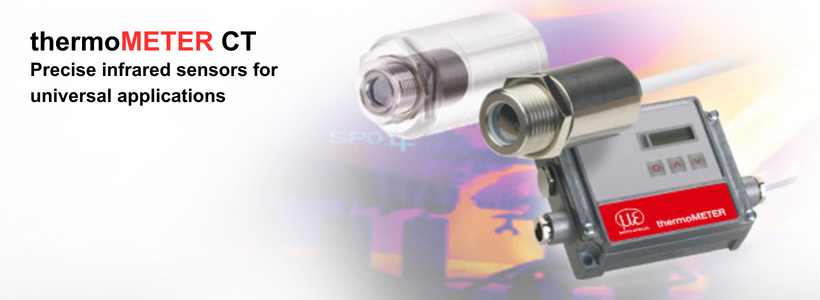

Universal IR pyrometer for common applications – thermoMETER CT

Characteristic

Measuring range (°C): -50 to 600 | -50 to 975
Optical resolution 2:1 | 15:1 | 22:1
Spectral range 8 to 14µm
One of the smallest IR sensors in the world
Robust and without cooling up to 180 °C
Very small infrared sensor head
Various output signals available
Rugged sensor head
Exchangeable sensors
Best price

Data sheet thermoMETER CT

Infrared pyrometer for high speed temperature measurements – thermoMETER CTfast

Characteristic

Measuring range(°C): -50 to 975
Optical resolution 15:1/25:1
Spectral range 8 to 14µm
One of the smallest IR sensors in the world
Extremely short response times
For high-speed processes
Separate controller with programming keys
Fast scanning along a line

Data sheet thermoMETER CTfast

Pyrometer for extremely hot ambient temperatures – thermoMETER CThot

Characteristic

Measuring ranges (°C): -40 to 975
Optical resolution 10:1
Spectral range 8 to 14µm
Ambient temperature up to 250 °C without cooling
Separate controller with programming keys
Inclined sensor alignment avoids influences by material thickness
Typ. applications: dryers, kilns, heat treatment in the processing
of metals, plastics and textiles

Data sheet thermoMETER CThot

Infrared pyrometer for the metal processing – thermoMETER CTM2

Characteristic

Measuring ranges (°C): 250 to 800 | 385 to 1600
Optical resolution 40:1 | 75:1
Spectral range 1.6µm
Miniaturized IR thermometer
Ambient temperatures up to 125°C without cooling
Separate controller with programming keys
High electromagnetic compatibility
Typ. applications: welding, soldering, forming, sintering

Data sheet thermoMETER CTM1/M2

Infrared pyrometer for metals & composite materials – thermoMETER CT-M3

Characteristic

Measuring ranges (°C): 50 to 400 | 100 to 600 | 150 to 1000
Optical resolution 22:1 or 33:1 or 75:1
Spektral range 2.3µm
Miniaturized IR thermometer
Up to 85°C ambient temperature without cooling
Very fast response times from 1 ms
Separate controller with programming keys
Short measuring wavelength reduces measurement errors due
to emissivity changes
Especially suitable for measurements of metals and composites

Data sheet thermoMETER CTM3

Infrared pyrometer for extremely fast temperature measurements – thermoMETER CT-M4

Characteristic

High measurement speed of 90 µs response time for extremely
fast processes
Measuring range (°C): 0 to 500
Optical resolution 10:1
Suitable for metals and non-metals due to large, short-wave
spectral range (2.2. to 6 µm)
Ideal for industrial temperature measurements from 0 °C
Separate controller with programming keys
Integrated USB interface

Data sheet thermoMETER CTM-4SF10-C3
