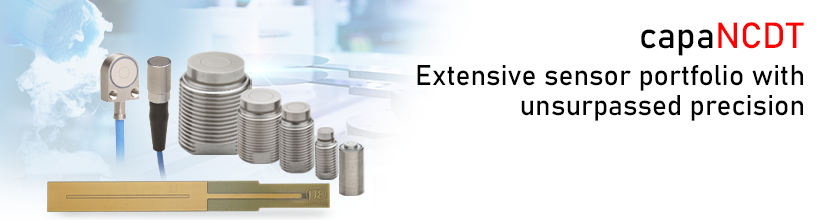

capaNCDT sensors                                                                                                                    Product Technology

Micro-Epsilon offers a comprehensive range of capacitive displacement sensors. These capacitive sensors are used for displacement, position and also for thickness measurements. Different sensor designs enable optimal integration into machines and systems. The capaNCDT sensors achieve best values in terms of linearity, temperature stability and resolution. While sub-micrometer precision is reached in industrial environments, even sub-nanometer accuracy can be achieved in clean environments.



 Characteristics

  •  Most powerful sensor portfolio in the world
  •  Non-contact distance and thickness measurements with highest measurement accuracy and signal stability
  •  Wide range of applications from industrial environments to vacuum and clean room
  •  High interference immunity to magnetic fields
  •  Extremely high temperature and long-term stability
  •  Vacuum-compatible versions


Cylindrical sensors with female connector





 Characteristic

  •  Measuring ranges (mm): 0.5 | 1.25 | 2 | 3
  •  Linearity from 0.5 µm
  •  Temperature range -50 ... +200 °C
  •  Active measuring areas up to Ø9.8 mm
  •  Target diameter from Ø6 mm
  •  capaNCDT controller for double the measuring range
  •    (reduced accuracy) or half the measuring range (increased
  •    accuracy)
  •  Thread for extremely stable installation
Data sheet capaNCDT CSE01 / CSE025


Precise laser sensor for measuring ranges up to 750 mm – optoNCDT 1750





 Characteristic

  •  Measuring ranges (mm): 0.5 | 1.25 | 2 | 3
  •  Linearity from 0.5 µm
  •  Temperature range -50 ... +200 °C
  •  Active measuring areas up to Ø9.8 mm
  •  Target diameter from Ø6 mm
  •  capaNCDT controller for double the measuring range (reduced
  •    accuracy) or half the measuring range (increased accuracy)
  •  Thread for extremely stable installation


Precise laser sensor for measuring ranges up to 750 mm – optoNCDT 1750





 Characteristic

  •  Measuring ranges (mm): 0.2 | 0.5 | 1 | 1.2 | 2
  •  Linearity from 0.054 µm
  •  Temperature range -50 ... +200 °C
  •  Active measuring areas up to Ø8.1 mm
  •  Target diameter from Ø7 mm
  •  capaNCDT controller for double the measuring range (reduced
  •    accuracy) or half the measuring range (increased accuracy)
  •  Vacuum-compatible versions available


Precise laser sensor for measuring ranges up to 750 mm – optoNCDT 1750





 Characteristic

  •  Measuring ranges (mm): 0.5 | 1
  •  Linearity from 0.5 µm
  •  Temperature range -50 ... +100 °C
  •  Active measuring areas up to 4.2 x 5.1 mm
  •  Target diameter from approx. 8 x 9 mm
  •  Ideal for gap measurement
Data sheet capaNCDT 61x0/IP


Precise laser sensor for measuring ranges up to 750 mm – optoNCDT 1750





 Characteristic

  •  Measuring ranges (mm) 0.2 | 0.5 | 1 | 1.2 | 2 | 3
  •  Linearity from 0.05 µm
  •  Temperature range -50 ... +200 °C
  •  Active measuring areas up to Ø10 mm
  •  Target diameter from Ø7 mm
  •  capaNCDT controller for double the measuring range (reduced
  •    accuracy) or half the measuring range (increased accuracy)
  •  Vacuum-compatible versions available
  •  Flat design ensures space-saving installation
