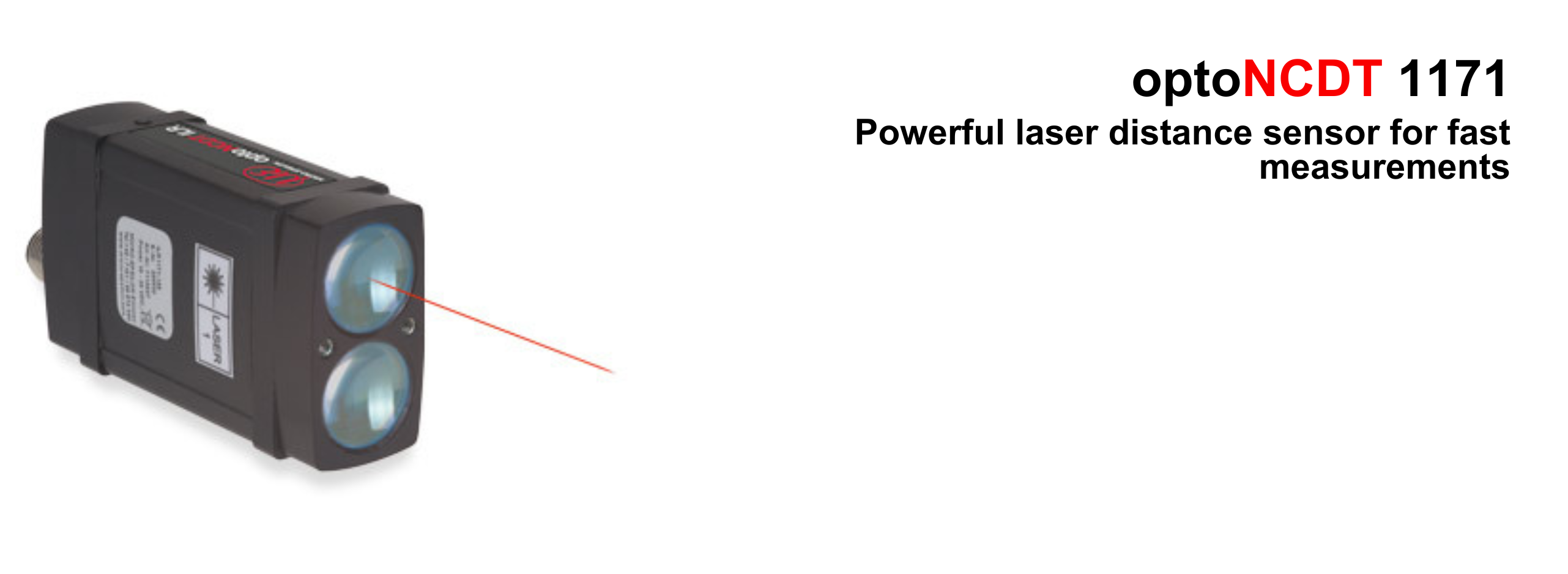

Fast laser distance sensor for outdoor applications
|
|
| The new optoNCDT ILR1171-125 laser distance sensor is used for distance measurements max to 270m and particularly impresses in outdoor measurements. Due to the laser time-of-flight principle with infrared light and a measuring rate of up to 40 kHz, high energy pulses are achieved, allowing stable measurements with very good signal quality. In addition, this better compensates for interfering influences such as fog or rain. The high temperature stability allows applications at temperatures from -40 °C to +60 °C. Thanks to its compact dimensions, the sensor can also be integrated into the smallest installation spaces. | |
|
|
Measuring range without reflector (m) 125
