Universal confocal controller with one and two channels                                                         Product Technology

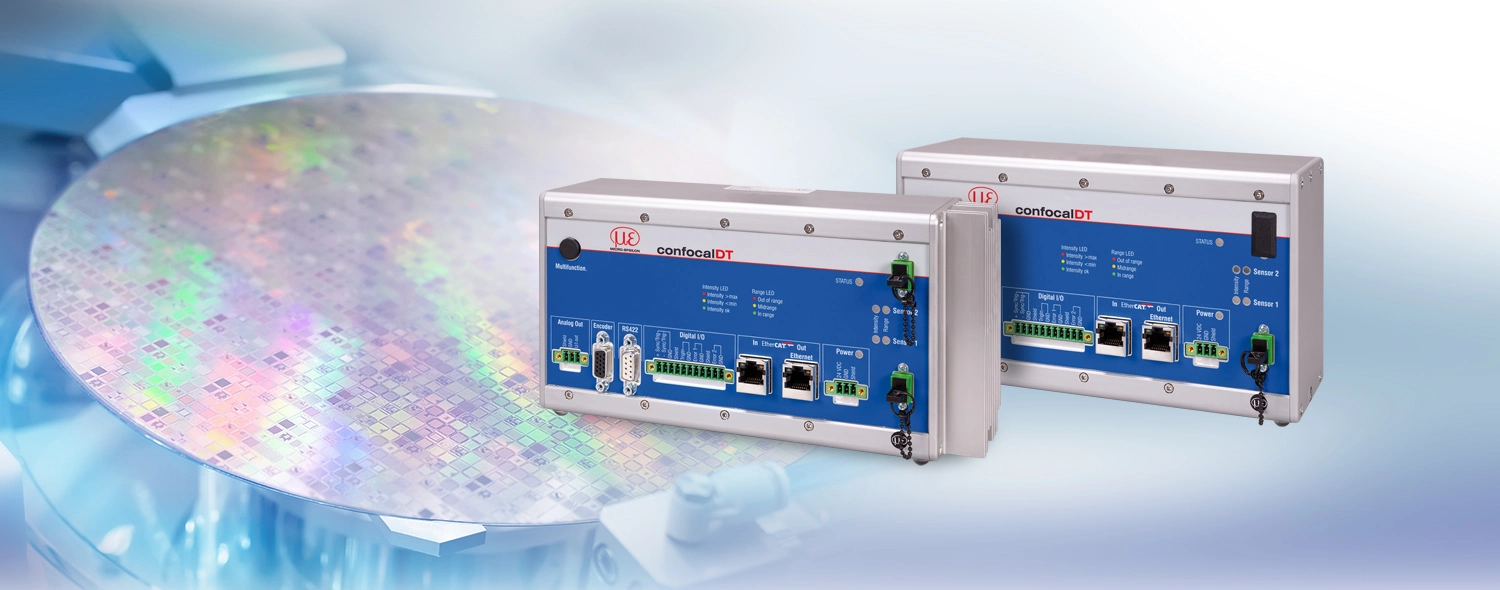

The confocalDT 2465 and 2466 confocal controllers are used for fast, high-precision distance and thickness measurements and achieve resolutions in the nanometer range. These multi-peak models simultaneously measure the thickness of up to 5 transparent layers. The controllers are characterized by high luminous intensity combined with a high measuring rate of up to 30 kHz. This enables high signal intensity even on dark or rough surfaces. The fast exposure control perfectly compensates for changing surfaces.

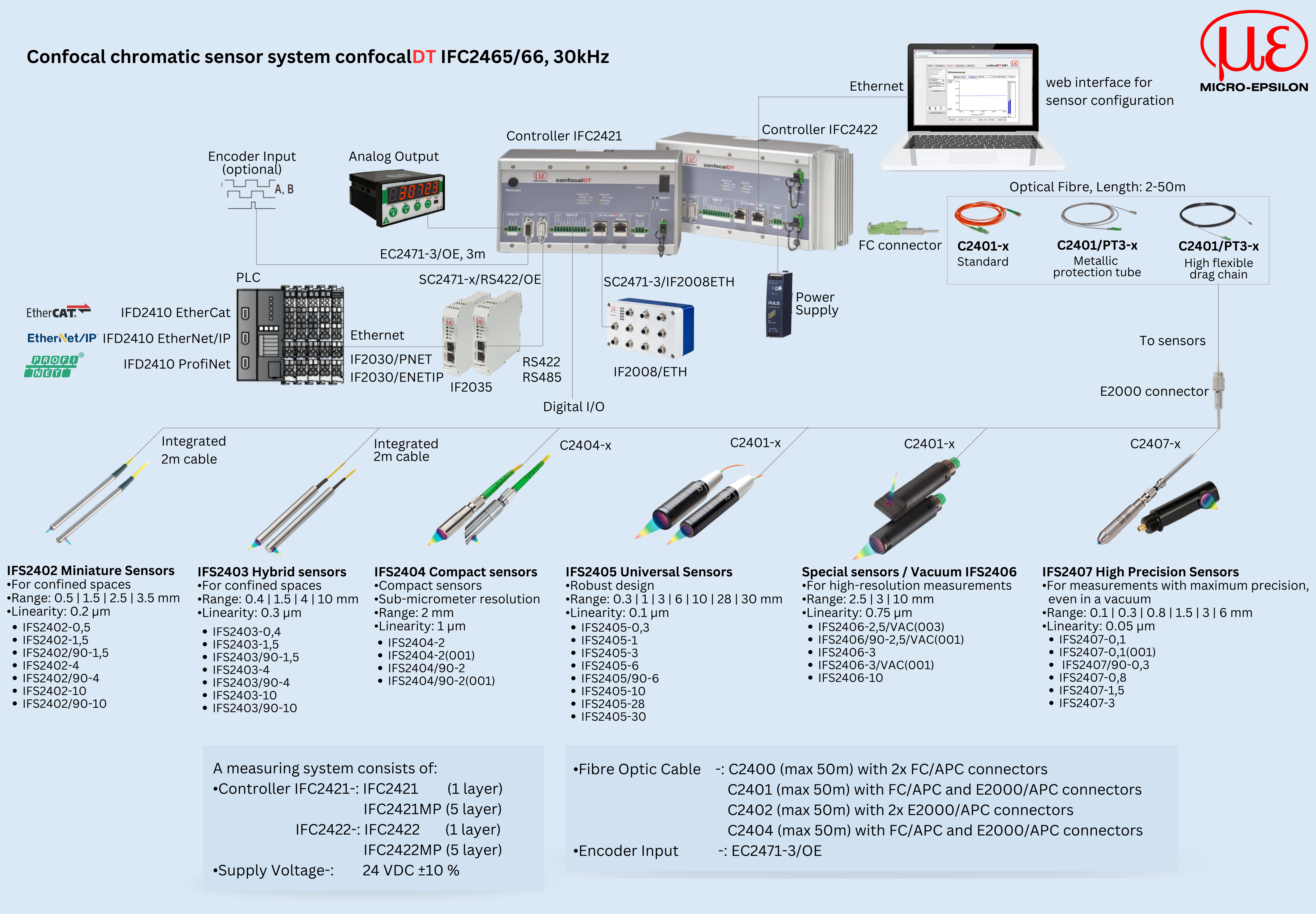

The controllers are available as a single-channel model (IFC2465) or as a dual-channel model (IFC2466). As they are compatible with every IFS sensor, the controllers reliably solve numerous measurements tasks.
