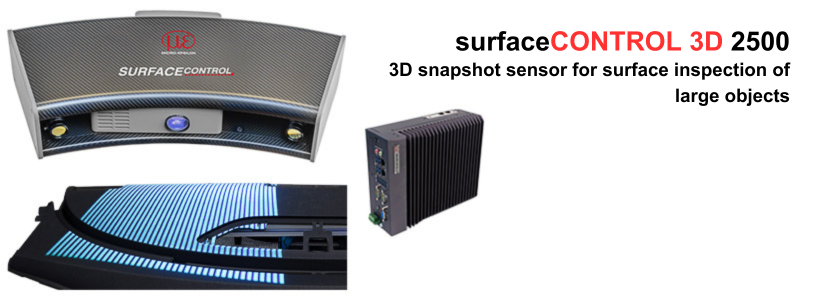

surfaceCONTROL3D 25x0 is a sensor for non-contact and non-destructiveoptical and

three-dimensional detection of components with diffuse reflective surfaces. It operates

according to the optical triangulation principle (fringe projection):

•  Using a matrix projector, a sequence of patterns is projected onto the test object
•    surface
•  The light of the patterns diffusely reflected by the test object surface is recorded by
•    two cameras
•  The three-dimensional surface of the test object is then calculated from the recorded
•    image sequence and the arrangement of the two cameras to each other:
•         Cameras
•         Projection unit
•         Fringe light
