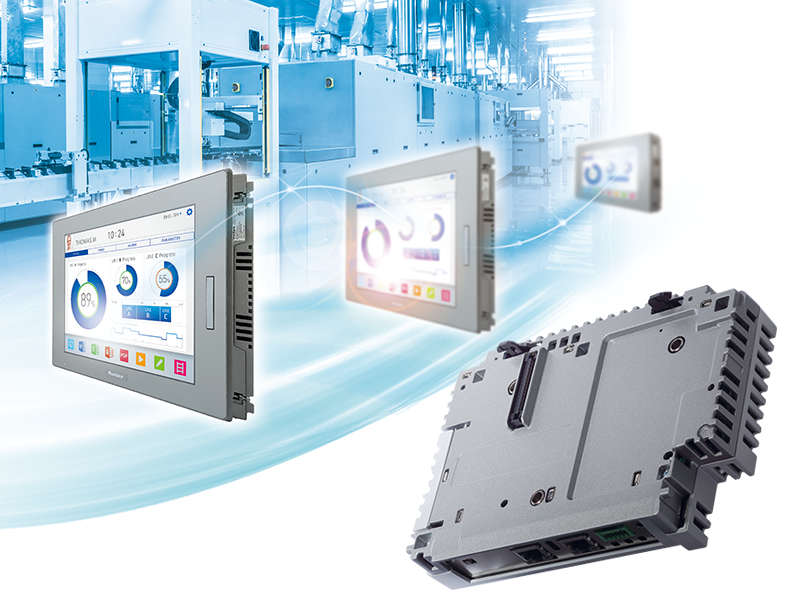

SP5000 Series Multi Display Adapter



Smart visualization more efficiency at any place

Ethernet-Connected Flat Panel adapted for an Industrial Environment

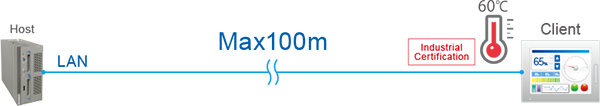

Separate installation across long distances with a single LAN cable

Well-adapted to production environments, reliable and easily installed.

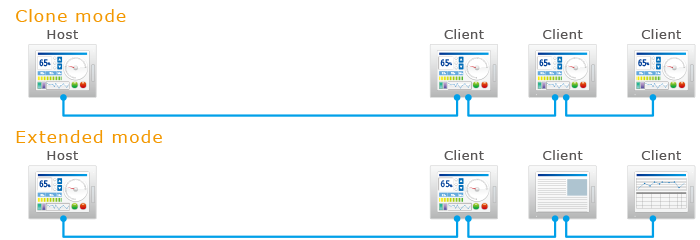

Select Display Mode

Compatible with cloned or extended display mode. Independent monitoring and operation on each panel is possible.

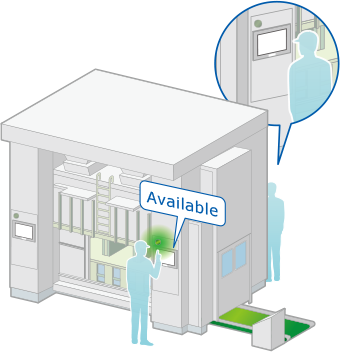

Exclusive Control of Touch Input

Prevent trouble due to unintended simultaneous operation by multiple users.

* Use of this exclusive control is limited to a specific host machine.

Peace of mind in a harsh environment. "Coated model" features more protection from corrosion.

With a coated model of SP5000 Series display module, extended product lifetime for use in harsh environments compared to uncoated products. Corrosion resistance is also improved.
(Model No.: PFXZCDADEXR1F0C)

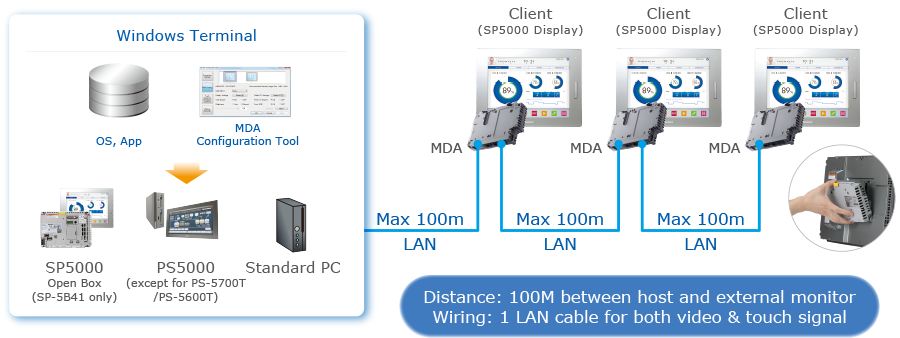

System Configuration



* MDA: Multi Display Adapter (Model No.: PFXZCDADEXR1, Coated Model No.: PFXZCDADEXR1F0C)

Specifications

Electrical Specifications

Model PFXZCDADEXR1
Power supply Rated input voltage 12Vdc (Supplied by the Display Module)
Power consumption 8W or less

Environmental Specifications

Model PFXZCDADEXR1
International safety standards
Physical environment Surrounding air temperature 0 to 60 °C (32 to 140 °F)
Surrounding air and storage humidity 10 to 90% RH (non-condensing, wet bulb temperature 39 °C [102.2 °F] or less)
Dust 0.1 mg/m3 (10-7 oz/ft3) or less (non-conductive levels)
Pollution degree For use in Pollution Degree 2 environment
Corrosive gases Free of corrosive gases
Atmospheric pressure
(operating altitude)
800 to 1,114 hPa (2,000 m [6,561 ft] or lower)
Mechanical environment Vibration resistance IEC/EN 61131-2 compliant
5 to 9 Hz single amplitude 3.5 mm (0.14 in)
9 to 150 Hz fixed acceleration: 9.8 m/s2
X, Y, Z directions for 10 cycles (approximately 100 minutes)
Shock resistance IEC/EN 61131-2 compliant
147 m/s2, X, Y, Z directions for 3 times
Electrical environment Noise Immunicty Noise Voltage: 1,000 Vp-p
Pulse Duration: 1 μs
Rise Time: 1 ns
(via noise simulator)
Electrostatic discharge
immunity
Contact discharge method: 6 kV (IEC/EN 61000-4-2 Level 3)

Structural Specifications

Model PFXZCDADEXR1
Cooling method Natural air circulation
External dimensions (W x H x D) 188 x 131 x 35 mm(7.4 x 5.16 x 1.38 in.)
Weight 800 g (1.76 lb) or less

SP5000 Series Display Module Specifications

Display Type Product Name Model No. Display Size Touch Panel Type Details
Premium SP-5800WC PFXSP5800WCD 19" Wide (FWXGA) Projected Capacitive
(multi-touch)
SP-5700WC PFXSP5700WCD 15" Wide (FWXGA)
SP-5700TP PFXSP5700TPD 15" (XGA) Analog Resistive Film
(multi-touch)
SP-5660TP PFXSP5660TPD 12" (XGA)
SP-5600TP PFXSP5600TPD 12" (XGA)
SP-5500TP PFXSP5500TPD 10" (SVGA)
Advanced SP-5600TA PFXSP5600TAD 12" (XGA) Analog Resistive Film
SP-5600WA PFXSP5600WAD 12" Wide (WXGA)
SP-5500WA PFXSP5500WAD 10" Wide (WXGA)
SP-5400WA PFXSP5400WAD 7" Wide (WVGA)
