ProfiSignal software – effective and easy to operate

The ProfiSignal software from Delphin is recommended as the optimal accompaniment to ProfiMessage D devices and provides secure and easy recording of all measurement data. It is designed for both small and large numbers of channels and is highly practical for evaluation tasks.



The tool offers the choice of an extensive range of diagram types and provides a diverse range of additional alarm and monitoring functions. The ability to process large volumes of data and a range of interfaces and drivers makes ProfiSignal a very powerful tool.


ProfiSignal is available in four different versions and therefore suitable for a range of applications:

ProfiSignal Go

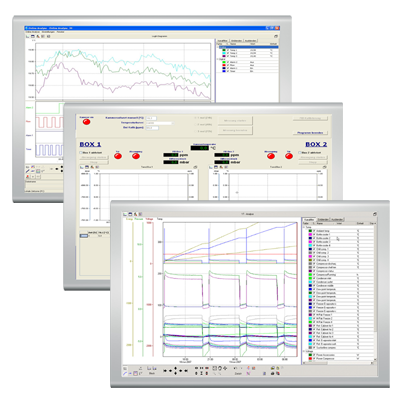

ProfiSignal Go enables you to portray online data from Message and Expert hardware in diagram format. Numerous analysis functions such as zoom, cursor, movable axes, markers, ASCII export and calculation channels enable fast measurement-data portrayal and post-processing.

ProfiSignal Basic

ProfiSignal Basic combines ProfiSignal Go functions with operating and monitoring elements for process visualisations, e.g. digital and analog displays, switches, buttons and signal lamps. The software enables you to create simple visualisation tasks as well as complex visualisation systems.

ProfiSignal Klicks

ProfiSignal Klicks adds process-automation functions to ProfiSignal Basic. Processes can be portrayed as structure charts and a script language (fully operable per mouse) enables even those without specialist IT knowledge to create complex test stand and automation applications including automated report generation.

ProfiSignal Web

With the new add-on ProfiSignal Web, it is possible to access not only current measurement series and process parameters, but also historical measurement data, regardless of location. The display is in to customizable dashboards easily in the browser of any terminal.


Stand-alone monitoring

Monitoring and automation tasks are performed independently by the ProfiMessage D device using software channels.

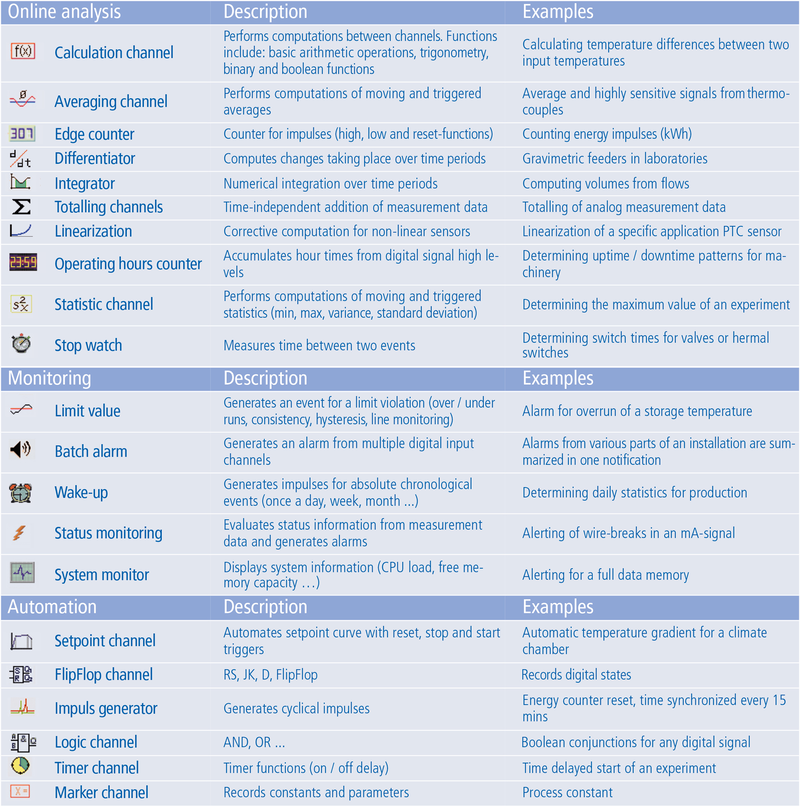

Software channels are predefined function modules that users set up, configure and process within the device by mouse clicking. For example, computations can be performed on measurement via calculation channels. Limit-value channels monitor measurement data and issue alarms and dispatch emails in the event of an alarm.


There is practically no limit to the number of available software channels. All functions are independently processed by the powerful internal processor and ensure fully secure operation of the ProfiMessage D device.
