Power supply options for IOT sensor and devices X-SOLAR

Standalone PV System for IOT sensor and devices

The X-solar is a standalone PV system for your IOT Sensor and Device.

It contains a 7AH Lead-acid battery, a solar battery controller and an optional solar panel.

It can provide a continuous power supply (4VDC/5VDC/12VDC) to your sensor.

The power output and the connector type can be customized for your application.

It's particularly adapted for Harsh Industrial Environment where mains power can not be used.

Technical Documents

● Datasheet

● Drawing

● Quick Start

● Battery Life Simulation

Certifications & Approvals
	CE-certification X-Solar

	2.4GHz CE Certification

	REACH Regulation Declaration

	Beanair® ROHS

	Limited warranty certificate

	MSDS Valve Regulated Lead Acid BatteryLimited warranty certificate

Technical Specifications

Product reference

X-SOL-7AH-SLP-1CH-VOUT-CL

SLP- Solar Panel Power

- 20W (adapted to countries with very High level of solar Irradiance: Africa/South Asia/South America)

- 50W (adapted to countries with High level of solar Irradiance: South of Europe/South USA)

- No solar Panel

VOUT - Voltage Output

4VDC : 1 channel with 4VDC output

12VDC: 1 channel with 12VDC output

5VDC: 1 channels with 5VDC output

CL– Cable length between X-solar box and solar panel

5M : 5meters

Solar panel specifications
Maximum Power (Pmax)	High effciency Monocrystalline solar cell technology
Max Energy efficiency	20,4%
Maximum Power (Pmax)	20W or 50W
Voltage at Pmax	17.8VDC
Current at Pmax	1.12A(20W), 2.8A(50W)
Operating Temperature	-40°C to +85°C
Dimensions and Weight (20W version)	345mm x 370mm x 25mm, 2 kg weight

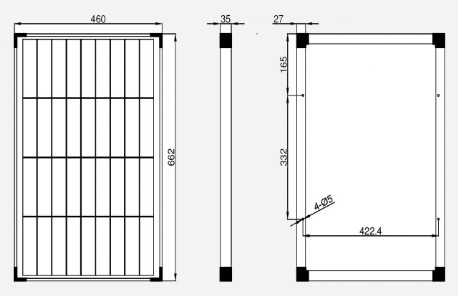

Dimensions and Weight (50W version)	662 x 460 x 35mm, 4 kg weight
Connector Type	M12-4pins Male , A-Coding
IP Rating	Waterproof IP67\|NEMA 6
Cable length	5 meters
Mounting method	Screw mounting

Charging controller box specifications
Charging controller type	Solar charging controller with Overvoltage/Undervoltage protection
Input voltage solar cell panel	14-30VDC
Number of output voltage	1
Connector Types	1 x M8-3Pins Female A-Coding for sensors power 1 x M12-4Pins Female A-Coding for Solar panel
Max Input current	10A
Power consumption	< 10mA , Led switch on
Battery Technology	Valve regulated lead acid battery
Battery Capacity	7Ah
Output Voltage	4VDC 12VDC 5VDC
Led displays	Battery Full and Charging
Dimensions	260 mm x160 mm x 90 mm
IP Rating	Waterproof IP67\|NEMA 6
Weight	4.5kg
Operating Temperature	-15°C to +50°C

Optional Accessories

Molded Cable M8-3 pins to M8-3Pins for X-Solar Box Only, PVC Material
XSOLAR-CBL-2M for 2 meters of cable length
XSOLAR-CBL-5M for 5 meters of cable length
XSOLAR-CBL-10M for 10 meters of cable length

Solar Panel Characteristics

X-SOL-7AH-20W-1CH-4V-5M or X-SOL-7AH-20W-1CH-12V-5M
