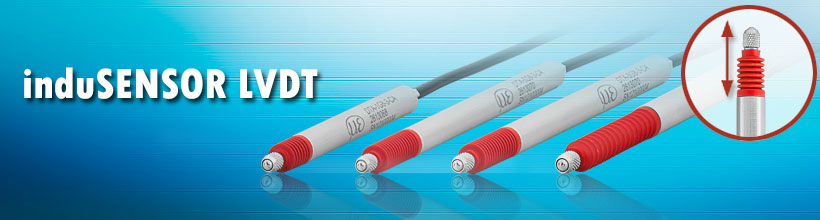

induSENSOR LVDT gages DTA series


LVDT gauging sensors are equipped with a plunger and fitted with a return spring. The measuring probe can be interchanged with commercially available measurement probes. Measurement probes are primarily used for the measurement and inspection of work-piece geometries (length, width, diameter, thickness, depth, height, etc.).



 Characteristics

  •  Measuring ranges (mm): ± 1 | 3 | 5 | 10
  •  Linearity max. ± 0.003mm
  •  Repeatability max. 0.15µm
  •  Diameter ø8mm
  •  Options with pneumatic push
  •  Low cost especially for a large number of pieces
