One-sided thickness measurement of plastics Product Technology

The combiSENSOR series sets new standards in non-contact thickness measurement. These precise sensors combine the advantages of eddy current and capacitive sensor technology in a single housing. This innovative technology enables the micrometer-precise measurement of material thicknesses, e.g. of battery coatings and plastic films. Target thicknesses as low as 5 µm can be detected. In addition, their robust design ensures that the sensors work reliably even in harsh industrial environments with high temperatures.

The combiSENSOR series is the optimal solution for inline thickness measurements of electrode coatings, coated metals and films requiring highest precision and reliability.

Catalog capaNCDT sensors

Datasheet combiSENSOR

Characteristics

Precise thickness measurement of coatings and films from 5 µm
Stable measurement with 0.02 µm resolution
Integrated function for determining the permittivity
Integrated temperature detection for the sensor temperature output
Robust design, ideal for high ambient temperatures
Analog interface, Ethernet / EtherCAT / PROFINET
Simple operation via web interface

Robust design for harsh environments

The combiSENSOR series not only impresses with its technical performance, but also with its robust design.
Therefore, the sensors can also be used in harsh industrial environments with high temperatures of up to 180° C.

Whether electrode coating, plastic films or coated metals - the combiSENSOR series is versatile and ensures consistently high quality in strip processes.


combiSENSOR KSB6430		combiSENSOR KSS64x0

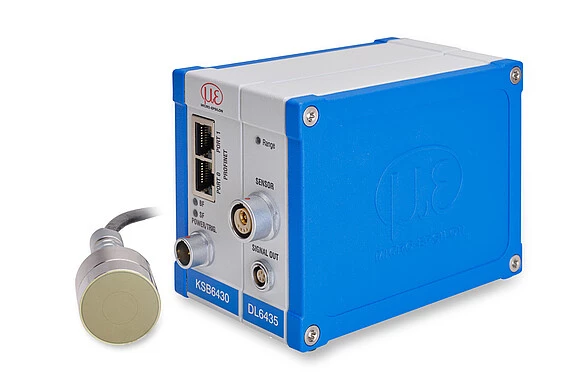

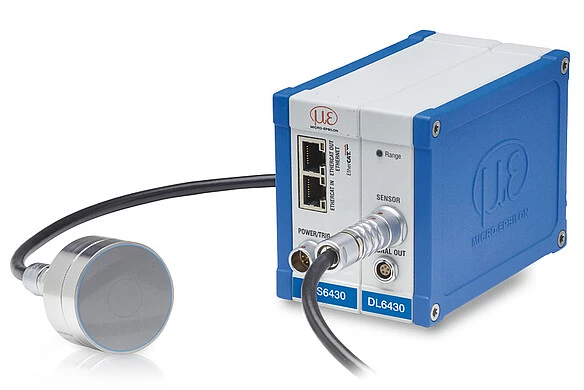

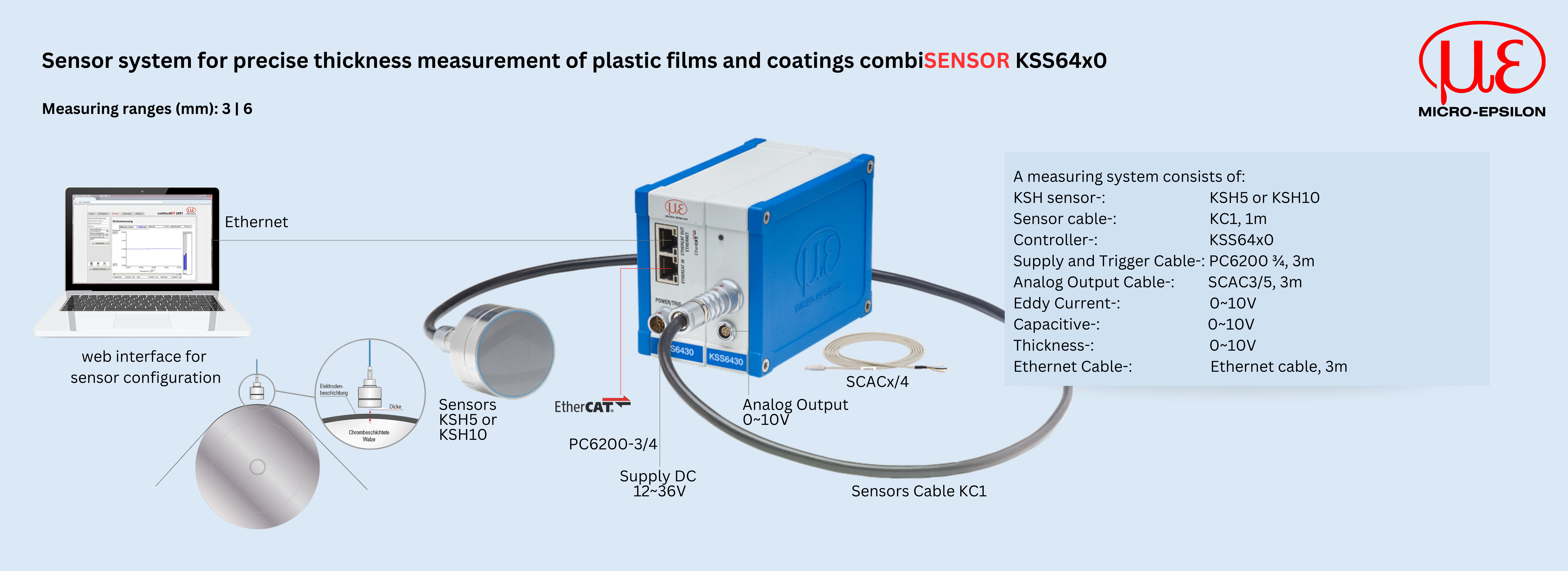

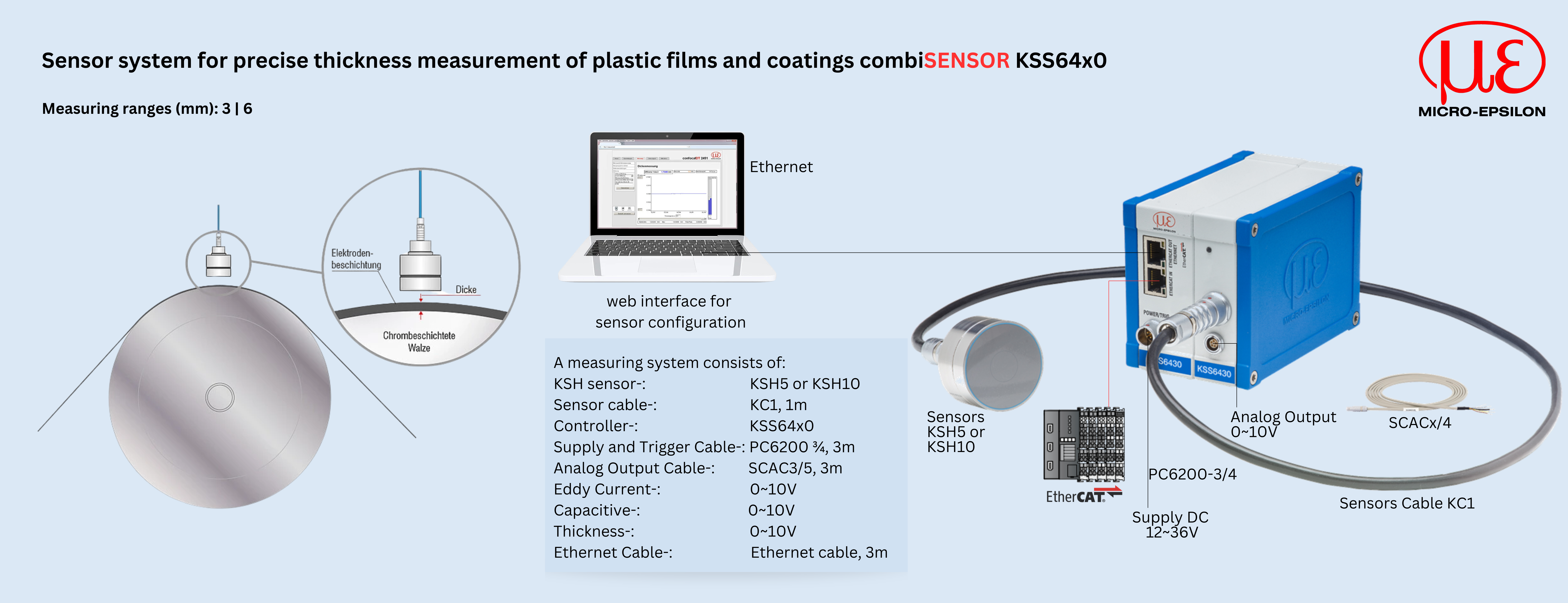

Sensor system for precise thickness measurement of electrode coatings One-sided thickness measurement of electrode coating Target thickness: 5 µm to max. 3 mm Measurement on steel rollers with chrome coating Temperature range of sensor -10 °C … +180 °C High resolution 0.05 µm The combiSENSOR KSB6430 measures the thickness of electrode coatings from a material thickness of just 5 µm. The thickness is measured on a chrome-coated roller which guides the material. Due to its robust design and high accuracy, the KSB6430 is ideal for inline thickness monitoring in battery film coating processes.		Sensor system for precise thickness measurement of plastic films and coatings One-sided thickness measurement of plastic film & coated metals Target thickness: 40 µm to max. 6 mm Measurement on metal rollers or metal plates Temperature range of sensor -10 °C … +85 °C High resolution 0.05 µm The combiSENSOR KSS64x0 enables precise, non-contact thickness measurement of non-conductive materials such as plastic films or coatings on metallic reference objects. The sensor's robust design makes it ideal for use in a wide range of industrial applications.

Measuring principle

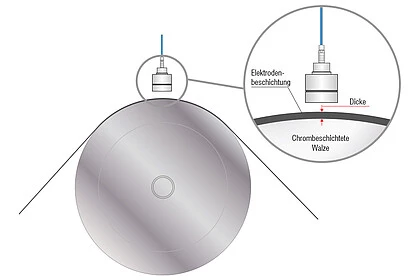

The combiSENSOR measures the coating thickness with a capacitive sensor to measure the distance from the coating and an eddy current sensor to measure the distance from the metal roller. The difference between the two signals provides the total thickness of the coated film, while mechanical influences are automatically compensated for.
