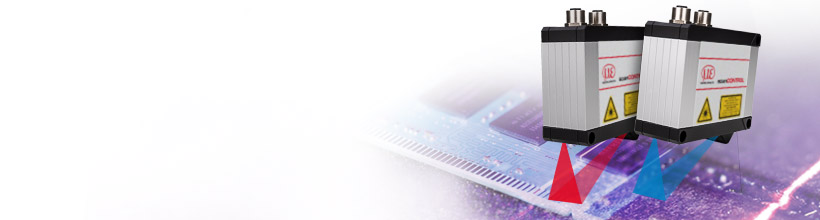

Powerful 2D/3D laser scanners

scanCONTROL 30x2 laser scanners are powerful profile sensors in terms of size, accuracy and measuring rate. These laser scanners provide calibrated 2D profile data with up to 5.12 million points per second. With a maximum profile frequency of 5 kHz, the scanners are designed for precise profile measurements in dynamic processes. The sensor matrix offers a resolution of 1,024 points with a point distance from 24 µm. This means that even small details can be detected reliably.

Characteristics

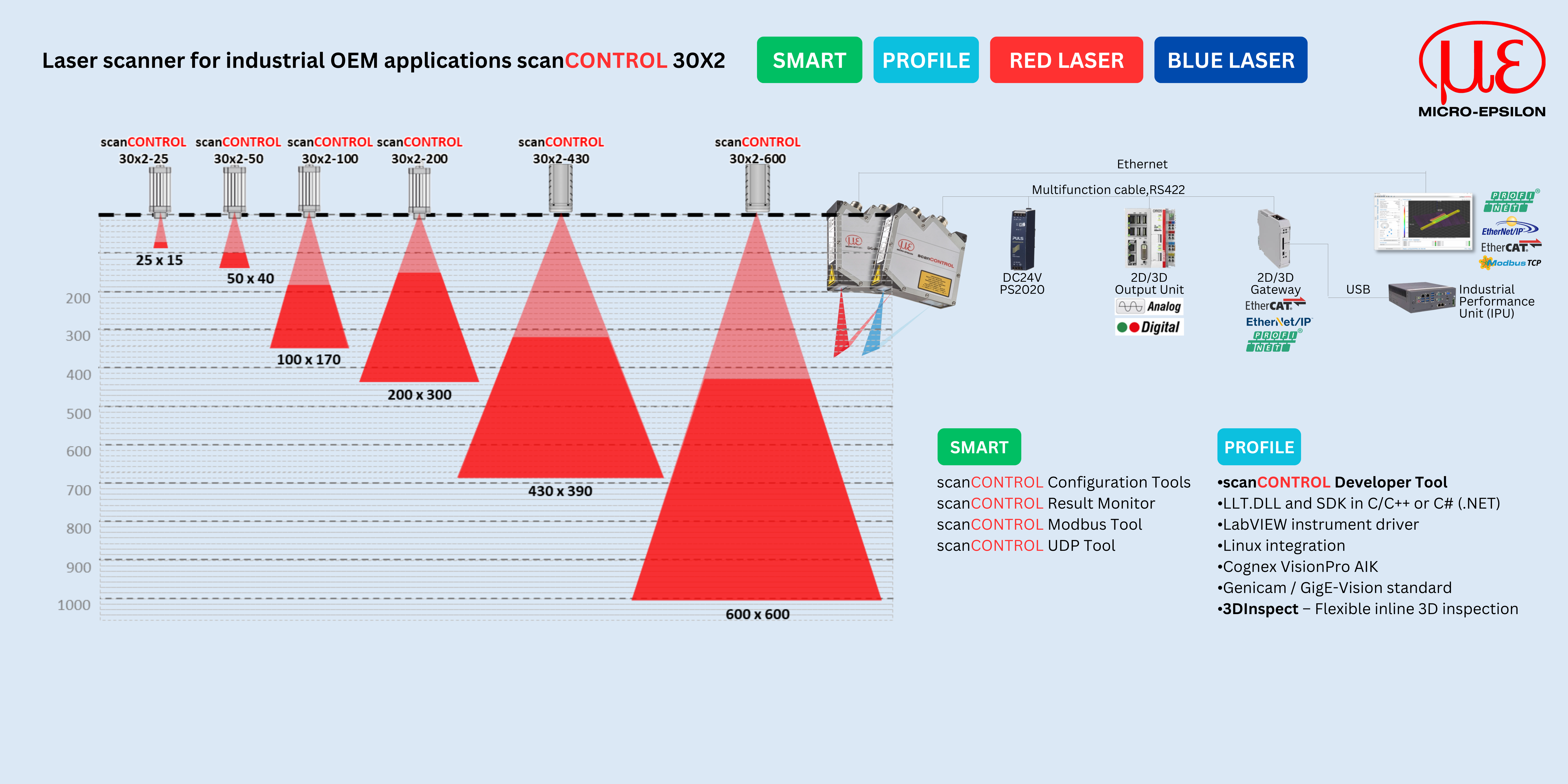

Measuring range z-axis up to 300 mm
Measuring range x-axis up to 290 mm
Measurement speed up to 5 kHz
Measuring rate up to 5,120,000 points/sec
Line linearity z-axis from 2 μm
Resolution x-axis up to 1,024 points
Available also with blue laser

Raw data	With integrated evaluation

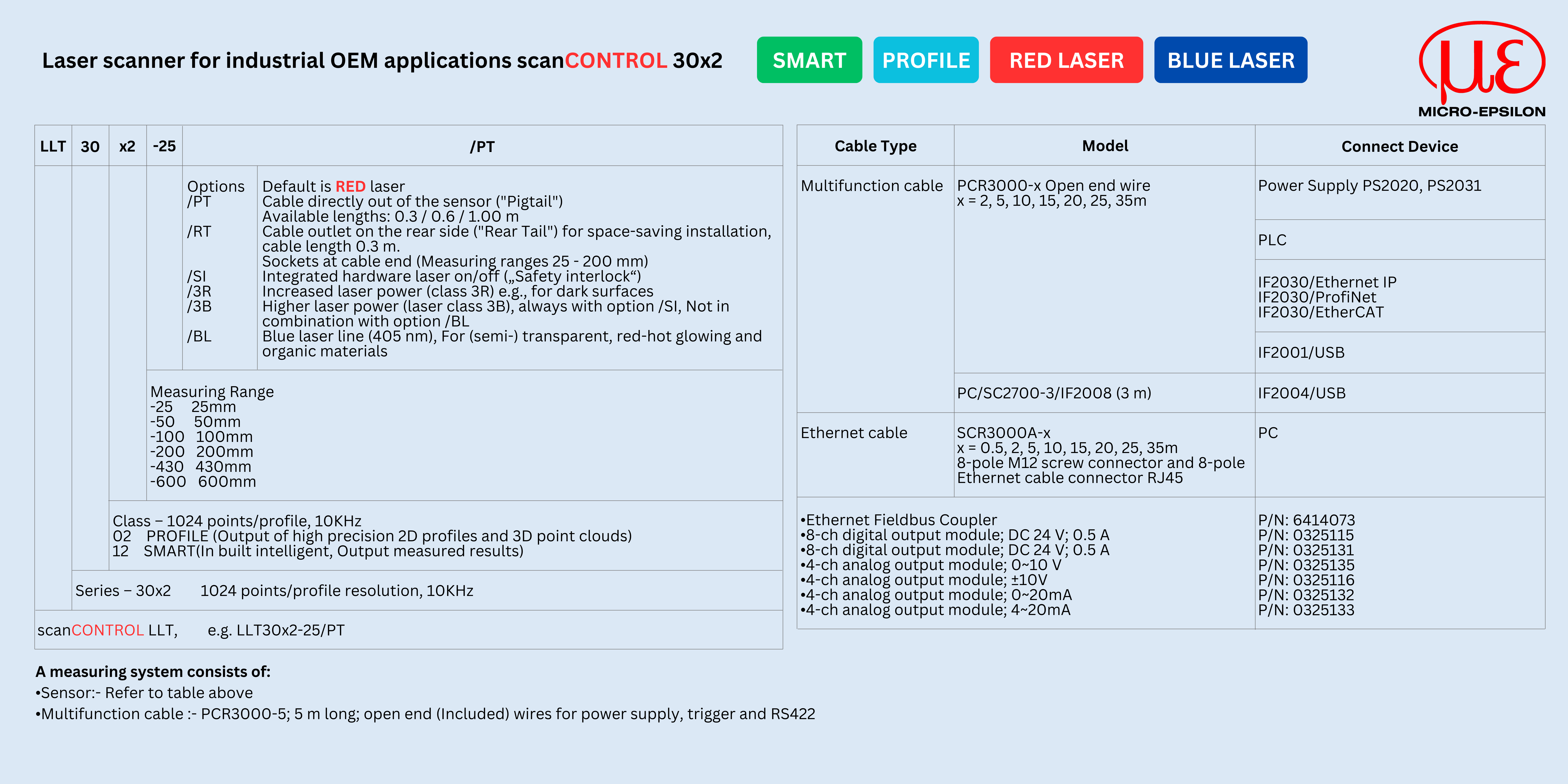

Modelle LLT 3002
3002-25	3012-25
3002-50	3012-50
3002-100	3012-100
3002-200	3012-200
Models LLT 3002 with Blue Laser
3002-25/BL	3012-25/BL
3002-50/BL	3012-50/BL
3002-100/BL	3012-100/BL
