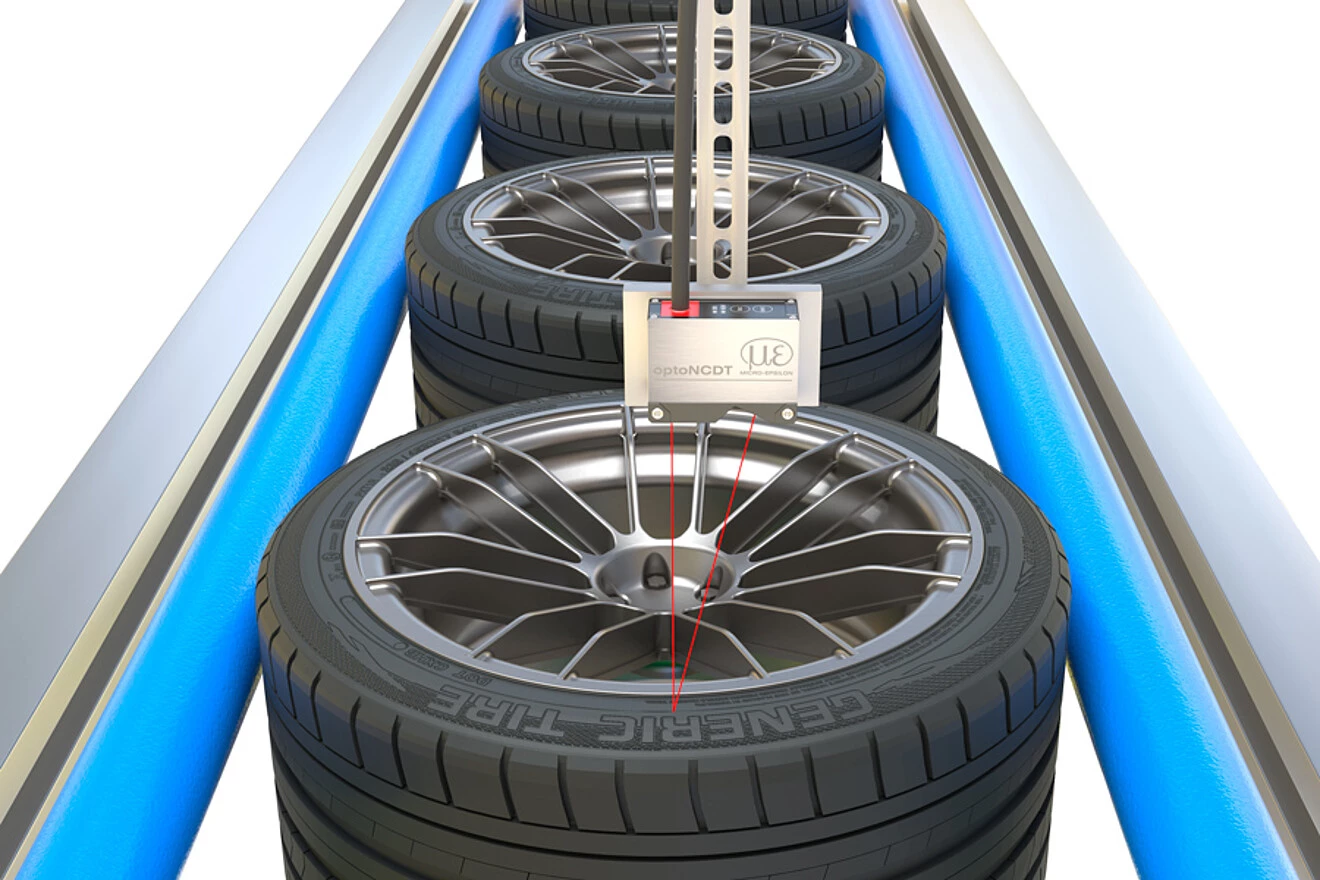

The optoNCDT 5500 from Micro-Epsilon represents the latest performance class among laser triangulation sensors. With its increased measuring rate of up to 75 kHz, the sensor is ideal for highly dynamic measurement tasks. This laser sensor delivers extremely precise measurement results, even on rapidly changing and poorly reflective surfaces. Its high repeatability enables measurements with submicron precision.

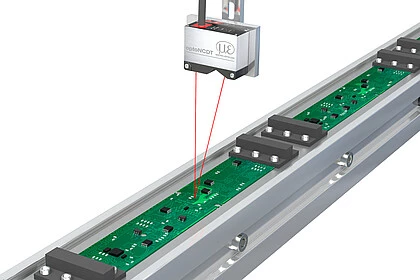

The optoNCDT 5500 is equipped with an intelligent surface control feature. New algorithms enable fast exposure control and therefore stable measurement results on surfaces where changing reflections occur. In addition, the sensor is extremely resistant to ambient light and can also be used in strongly illuminated environments. The new algorithms compensate for ambient light up to 50,000 lux.

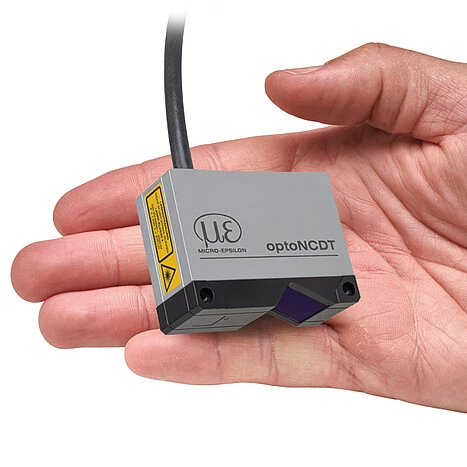

It is not necessary to align the sensor due to patented, repeatable mounting using mounting sleeves. This enables both easy sensor replacement and even higher precision in solving measurement tasks. Due to its small dimensions and the integrated controller, the laser sensor can also be installed in confined spaces. A web interface with ready-made presets makes the sensor immediately ready for use. The ILD5500 is more compact than its predecessor ILD2300. To enable a seamless changeover, Micro-Epsilon offers an adapter plate for a quick switch from ILD2300 to ILD5500.
