LASER MICROMETER

LASER MICROMETER

TAKIKAWA Laser Micrometer - LM Series from Takikawa Engineering(Japan) accurately measures inside/ outside diameters, gap and pitch, width and edge, thickness, position and movement. Available in fixed and separate head designs, single and dual axis configurations. Defect characterization, measurement,and SPC analysis can be accomplished with the Software for laser micrometer (LDM-PC EX).



Display Unit

Standard Speed Scanning (400 times/sec)

High Speed Scanning (2000 times/sec)


LUMP NECK DOWN DETECTOR

SURFACE VARIATION DETECTOR

TAKIKAWA Surface Variation Detector - TM Series Surface Variation Detectors from Takikawa Engineering(Japan) are designed to provide users with the reliable continuous high speed method to detect flaws in optical fibers, enamel, electric and vinyl wires, communication and power cables, metal & glass rods, pipes and hoses.



Surface Variation Detector (TM Series)

Surface Variation Detector with Noise Cancel Function (TMS Series)



JOINT DETECTOR/WIRE-BREAKING DETECTOR

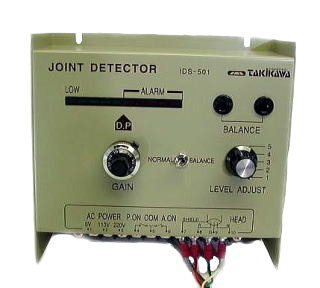

TAKIKAWA Joint Detector/Wire-breaking Detector - IDS/ID Series Joint Detectors from Takikawa Engineering(Japan) detect joints using various methods and detect wire-breaking as well.



Joint Detector/Wire-Breaking Detector (ID, IDS Series, CDD-15)



CONTROLLER



TAKIKAWA Outside Diameter Control System - DAC Series and PRF Series  Outside Diameter Control Systems from Takikawa Engineering(Japan) control diameter by outputting feedback signals to extruding machine or winding machine in continuous extruding molding production lines.



Outside Diameter Control System (DAC and PRF Series)



COUNTING EVENT PRINTER



TAKIKAWA Counting Event Printer - AD-50 and AD-50E Counting Event Printers from Takikawa Engineering(Japan) are ideal recording devices for quality control operation on electric cable production lines. They continuously print messages and distances of electric cables produced when receiving alarm signals from laser micrometers, surface variation detectors, spark testers, cable capacitance monitors, joint detectors, disconnection detectors and other instruments.



Counting Event Printer (AD-50)

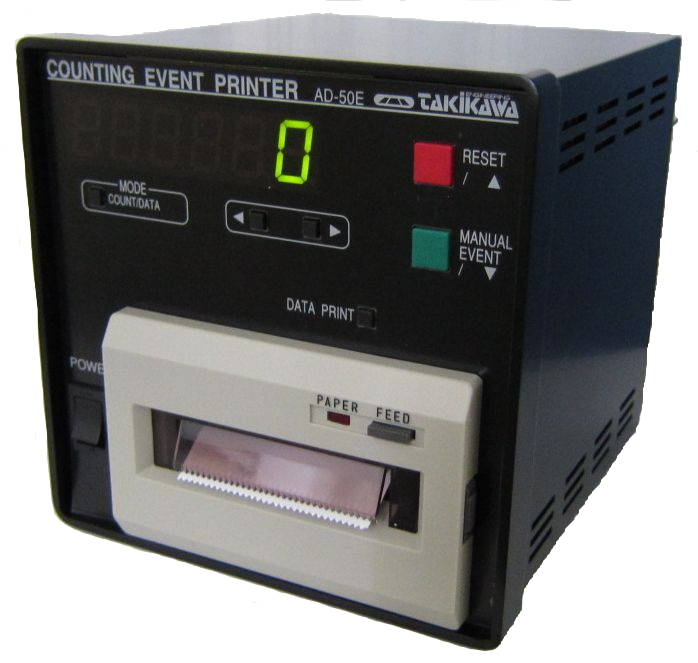

Simplified Counting Event Printer (AD-50E)



QUALITY CONTROL PRINTER

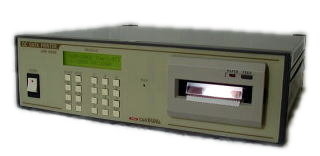

TAKIKAWA Counting Event Printer - LDM-100QC Quality Control Printers from Takikawa Engineering(Japan) are designed to print out calculated statistics  such as average, standard deviation and histograms, which are essential for quality control.



Quality Control Printer (LDM-100QC)



DATA PRINTERS FOR LDM



TAKIKAWA Printer for Laser Diameter - RS Printers from Takikawa Engineering(Japan) takes through the RS-232C interface and prints the display value from Takikawa’s Laser Diameter. The LDM-PCEX2 software collates the results and transfers the results to a PC through RS-232C.



Printer for Laser Diameter (RS-Printer)
