SP5000 Series Lineup / Specifications

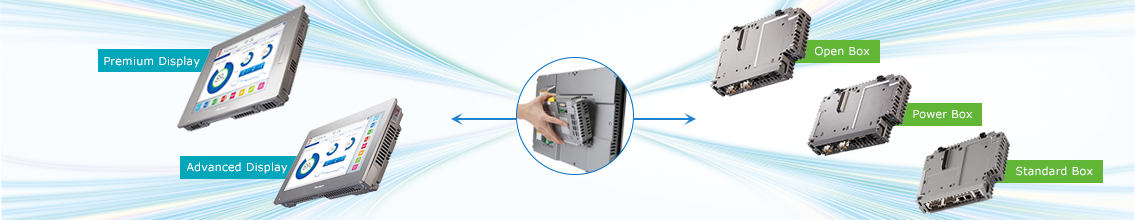

Module Configuration


Premium Display Advanced Display Open Box Power Box Standard Box
Industry's top-class display with high display quality and versatile functions Sophisticated display with high display quality Enable to use Windows Applications via HMI Reliable real-time OS installed in HMI
High performance & Extended HMI		 Reliable real-time OS installed in HMI
High performance HMI
SP-5800WC, SP-5700WC, SP-5700TP, SP-5660TP, SP-5600TP, SP-5500TP SP-5600TA, SP-5600WA,
SP-5500WA, SP-5400WA		 SP-5B41 SP-5B10 SP-5B00

Display Module

Display Type Product Name Model No. Display
Size		 Display
Colors		 Touch Panel
Type		 Front
USB		 Brightness
Sensor		 Auto
Scaling		 Details
Premium SP-5800WC *1 PFXSP5800WCD 19" Wide
(FWXGA)		 16 million Projected
Capacitive
(multi-touch)		 Yes Yes Yes Datasheet
（PDF）(link is external)
SP-5700WC *1 PFXSP5700WCD 15" Wide
(FWXGA)
SP-5700TP PFXSP5700TPD 15"
(XGA)		 Analog
Resistive
Film
(multi-touch)
SP-5660TP *2 PFXSP5660TPD 12"
(XGA)
SP-5600TP PFXSP5600TPD 12"
(XGA)
SP-5500TP PFXSP5500TPD 10"
(SVGA)
Advanced SP-5600TA PFXSP5600TAD 12"
(XGA)		 262,144 Analog
Resistive
Film		 No No No
SP-5600WA PFXSP5600WAD 12" Wide
(WXGA)
SP-5500WA PFXSP5500WAD 10" Wide
(WXGA)
SP-5400WA PFXSP5400WAD 7" Wide
(WVGA)

*1SP-5800WC, SP-5700WC and SP-5600TA are not compatible with SP-5B40 (End of Sale: Mar. 30, 2018).

*2SP-5660TP is not compatible with SP-5B10 (Power Box) and SP-5B00 (Standard Box).

Box Module

Box Type Product Name Model No. Windows
Application		 Expansion Unit Sound Output AUX Output Details
Open SP-5B41 PFXSP5B41 Yes Yes Yes Yes Datasheet
（PDF）(link is external)
Power SP-5B10 *3 PFXSP5B10 -
Standard SP-5B00 *3 PFXSP5B00 - - -

*3SP-5B10 (Power Box) and SP-5B00 (Standard Box) are not compatible with SP-5660TP.

Display Module x Box Module

Screen Size Product
Name		 Bright-
ness
Sensor/
Auto
Scaling/
Front
USB/
Multi-
touch		 Win-
dows
Apps		 Video/
Sound		 Remov-
able
System		 CFast
(Stor-
age)		 SD
(Stor-
age)		 USB
Type A		 USB
mini B		 SIO Ether
-net		 Rated
Voltage		 Details
19" Wide
(FWXGA)
 SP-5800WC
+
SP-5B41		 Yes Yes Yes Yes x 1 x 1 x 4 x 2 x 2 x 2 12 to
24 Vdc		 Display/
Box
SP-5800WC
+
SP-5B10		 Yes - - Yes - x 1 x 3 x 2 x 2 x 2 12 to
24 Vdc		 Display/
Box
SP-5800WC
+
SP-5B00		 Yes - - - - x 1 x 3 x 2 x 2 x 2 12 to
24 Vdc		 Display/
Box
15" Wide
(FWXGA)
 SP-5700WC
+
SP-5B41		 Yes Yes Yes Yes x 1 x 1 x 4 x 2 x 2 x 2 12 to
24 Vdc		 Display/
Box
SP-5700WC
+
SP-5B10		 Yes - - Yes - x 1 x 3 x 2 x 2 x 2 12 to
24 Vdc		 Display/
Box
SP-5700WC
+
SP-5B00		 Yes - - - - x 1 x 3 x 2 x 2 x 2 12 to
24 Vdc		 Display/
Box
15"
(XGA)
 SP-5700TP
+
SP-5B41		 Yes Yes Yes Yes x 1 x 1 x 4 x 2 x 2 x 2 12 to
24 Vdc		 Display/
Box
SP-5700TP
+
SP-5B10		 Yes - - Yes - x 1 x 3 x 2 x 2 x 2 12 to
24 Vdc		 Display/
Box
SP-5700TP
+
SP-5B00		 Yes - - - - x 1 x 3 x 2 x 2 x 2 12 to
24 Vdc		 Display/
Box
12"
(XGA)
Wireless LAN Model
 SP-5660TP
+
SP-5B41		 Yes Yes Yes Yes x 1 x 1 x 4 x 2 x 2 x 2 12 to
24 Vdc		 Display/
Box
12"
(XGA)
 SP-5600TP
+
SP-5B41		 Yes Yes Yes Yes x 1 x 1 x 4 x 2 x 2 x 2 12 to
24 Vdc		 Display/
Box
SP-5600TP
+
SP-5B10		 Yes - - Yes - x 1 x 3 x 2 x 2 x 2 12 to
24 Vdc		 Display/
Box
SP-5600TP
+
SP-5B00		 Yes - - - - x 1 x 3 x 2 x 2 x 2 12 to
24 Vdc		 Display/
Box
12"
(XGA)
 SP-5600TA
+
SP-5B41		 - Yes Yes Yes x 1 x 1 x 3 x 1 x 2 x 2 12 to
24 Vdc		 Display/
Box
SP-5600TA
+
SP-5B10		 - - - Yes - x 1 x 2 x 1 x 2 x 2 12 to
24 Vdc		 Display/
Box
SP-5600TA
+
SP-5B00		 - - - - - x 1 x 2 x 1 x 2 x 2 12 to
24 Vdc		 Display/
Box
12" Wide
(WXGA)
 SP-5600WA
+
SP-5B41		 - Yes Yes Yes x 1 x 1 x 3 x 1 x 2 x 2 12 to
24 Vdc		 Display/
Box
SP-5600WA
+
SP-5B10		 - - - Yes - x 1 x 2 x 1 x 2 x 2 12 to
24 Vdc		 Display/
Box
SP-5600WA
+
SP-5B00		 - - - - - x 1 x 2 x 1 x 2 x 2 12 to
24 Vdc		 Display/
Box
10"
(SVGA)
 SP-5500TP
+
SP-5B41		 Yes Yes Yes Yes x 1 x 1 x 4 x 2 x 2 x 2 12 to
24 Vdc		 Display/
Box
SP-5500TP
+
SP-5B10		 Yes - - Yes - x 1 x 3 x 2 x 2 x 2 12 to
24 Vdc		 Display/
Box
SP-5500TP
+
SP-5B00		 Yes - - - - x 1 x 3 x 2 x 2 x 2 12 to
24 Vdc		 Display/
Box
10" Wide
(WXGA)
 SP-5500WA
+
SP-5B41		 - Yes Yes Yes x 1 x 1 x 3 x 1 x 2 x 2 12 to
24 Vdc		 Display/
Box
SP-5500WA
+
SP-5B10		 - - - Yes - x 1 x 2 x 1 x 2 x 2 12 to
24 Vdc		 Display/
Box
SP-5500WA
+
SP-5B00		 - - - - - x 1 x 2 x 1 x 2 x 2 12 to
24 Vdc		 Display/
Box
7" Wide
(WVGA)
 SP-5400WA
+
SP-5B41		 - Yes Yes Yes x 1 x 1 x 3 x 1 x 2 x 2 12 to
24 Vdc		 Display/
Box
SP-5400WA
+
SP-5B10		 - - - Yes - x 1 x 2 x 1 x 2 x 2 12 to
24 Vdc		 Display/
Box
SP-5400WA
+
SP-5B00		 - - - - - x 1 x 2 x 1 x 2 x 2 12 to
24 Vdc		 Display/
Box
Model Number List (PDF)

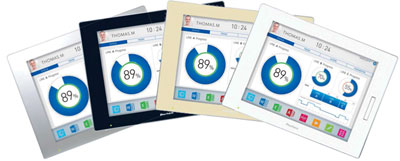

Bezel Color *4

Front Color


Front Color Black Off-white Beige Silver
Front Panel Black
（PANTONE 432C）		 Off-white
（PANTONE Cool Gray 1C）		 Beige
（PANTONE 7535C）		 Silver
（PANTONE 8401C）
Front Bezel Black Standard（Silver） Standard（Silver） Standard（Silver）

*4SP-5800WC and SP-5700WC support a front color silver (no front USB) model only.

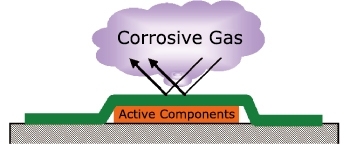

Coating *5

Peace of mind in a harsh environment. "Coated models" feature more protection from corrosion.

Extended product lifetime for use in harsh environments compared to uncoated products. Corrosion resistance is also improved.


*5Except for SP-5800WC and SP-5700WC.

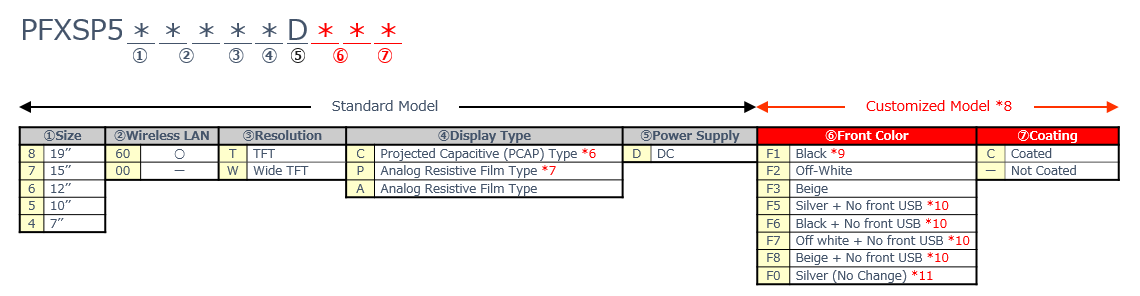

Model Numbers

Display Module




*65 simultaneous touch

*72 simultaneous touch

*8SP-5800WC and SP-5700WC support a front color silver (no front USB) model only.

*9For Premium Display with F1 selected, an enhanced front USB cover with a screw is already installed.

*10The overlay types from F5 to F8 can be selected for Premium Display only.

*11When a coated model is selected with standard silver front color, choose F0.

Box Module
